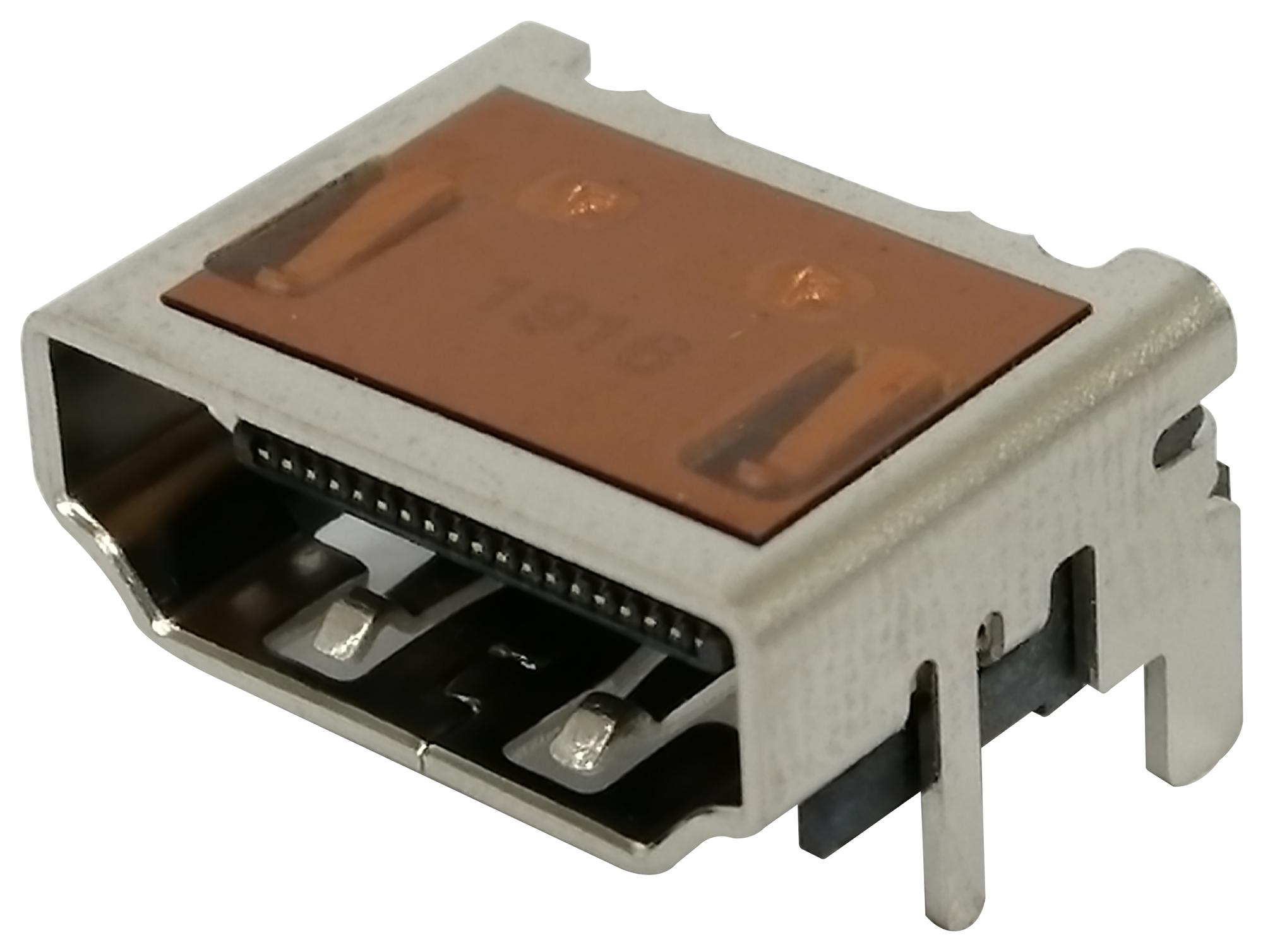

MOLEX 2086581061 HDMI Receptacle
The MOLEX 208658-1061 is a high-definition multimedia interface (HDMI) receptacle designed for wire-to-board connectivity. Featuring a right-angle orientation and a 0.50mm pitch, this receptacle provides a compact and reliable solution for transmitting high-resolution audio and video signals. The gold plating on both the mating and termination interfaces ensures excellent signal integrity and durability. Its polarized design and PCB retention features enhance connection security, making it suitable for a wide range of consumer electronics and industrial applications. The liquid crystal polymer resin construction offers robust mechanical performance and heat resistance.
MOLEX 2086581061 HDMI Receptacle Specifications:
- circuits_loaded: 19
- circuits_maximum: 19
- color: Black
- durability_mating_cycles: 10000
- gender: Female
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating_mating: Gold
- material_plating_termination: Gold
- material_resin: Liquid Crystal Polymer
- net_weight_g: 2.178
- number_of_rows: 2
- orientation: Right Angle
- pcb_locator: Yes
- pcb_retention: Yes
- packaging_type: Embossed Tape on Reel
- panel_mount: Without Flange
- pitch_mating_interface: 0.50mm
- pitch_termination_interface: 0.50mm
- plating_min_mating: 0.760µm
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- ports: 1
- temperature_range_operating_c: -20° to +85°
- termination_interface_style: Surface Mount
- current_maximum_per_contact_a: 0.5
- voltage_maximum_dc_v: 40
