MOLEX 2147612205 Micro-Fit 3.0 Female-to-Pigtail

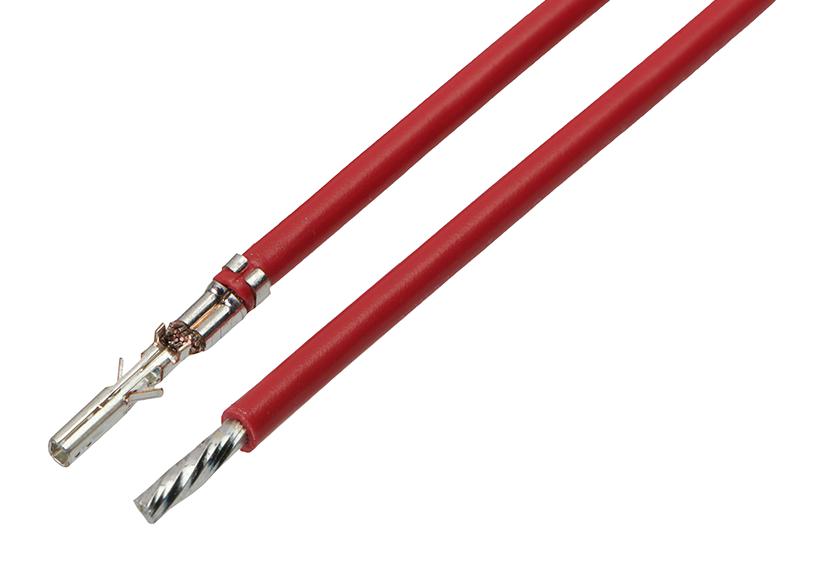

The MOLEX 214761-2205 is a pre-crimped lead assembly designed for secure and efficient wire connections. This Micro-Fit 3.0 female-to-pigtail connector features gold-plated contacts ensuring excellent conductivity and corrosion resistance. With a red insulation jacket and 22 AWG wire gauge, it's suitable for various power and wire-to-board applications in industrial and consumer electronics. The pre-crimped design simplifies installation and reduces assembly time.
MOLEX 2147612205 Micro-Fit 3.0 Female-to-Pigtail Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- series: 214761
- application: Power, Wire-to-Board, Wire-to-Wire
- assembly_configuration: Pre-crimped Lead Only
- connector_type: Micro-Fit 3.0
- cable_length: 450.00mm
- wire_size_awg: 22
- circuits_loaded: 1
- color: Red
- gender: Female-Pigtail
- material_metal: Phosphor Bronze
- plating_mating_min: 0.762µm
- plating_termination_min: 2.540µm
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max: 1.85mm
- current_maximum_per_contact: 8.5A
- upc: 193264574612
- net_weight_g: 2.054
- material_plating: Gold (Mating), Tin (Termination)
Buy the 214761-2205 MOLEX Micro-Fit 3.0 Female-to-Pigtail | myMectronic
Purchase the MOLEX 214761-2205 Micro-Fit 3.0 connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2147612205?
You can click on the BUY or RFQ button to purchase 2147612205 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2147612205?
You can download the 2147612205 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2147612205?
MOLEX
