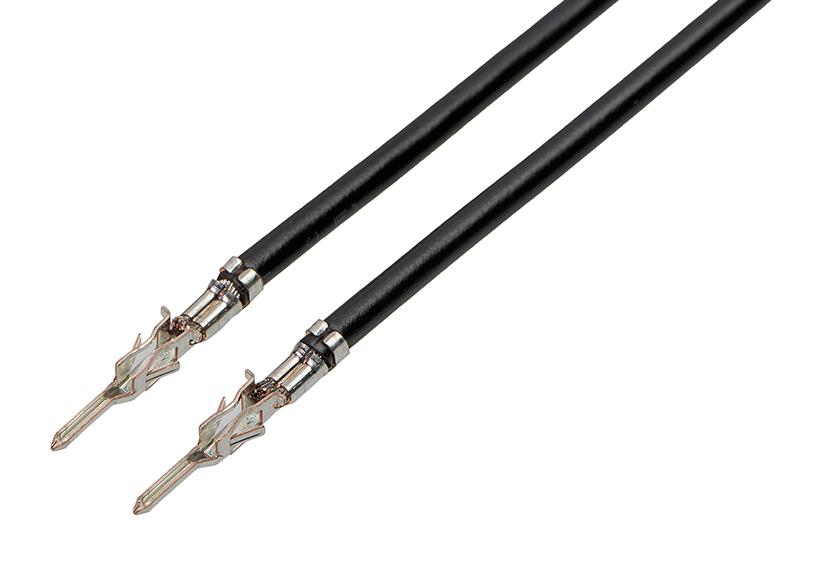

MOLEX 2147621122 Micro-Fit 3.0 Male-to-Male
The MOLEX 214762-1122 is a pre-crimped lead cable assembly designed for wire-to-wire power applications. This assembly utilizes Micro-Fit 3.0 male connectors on both ends, ensuring a secure and reliable connection. The tin plating provides excellent conductivity and corrosion resistance, while the 150mm length offers flexibility in system design. It is RoHS compliant and suitable for a variety of industrial and commercial applications requiring robust and pre-terminated cable solutions.
MOLEX 2147621122 Micro-Fit 3.0 Male-to-Male Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- series: 214762
- application: Power, Wire-to-Wire
- assembly_configuration: Pre-crimped Lead Only
- connector_type: Micro-Fit 3.0
- cable_length: 150.00mm
- wire_size: 18 AWG
- color: Black
- gender: Male-Male
- material_metal: Phosphor Bronze
- material_plating_mating: Tin (Sn)
- material_plating_termination: Tin
- circuits_loaded: 1
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max: 1.85mm
- current_max_per_contact: 8.5A
- upc: 193264574735
- plating_min_mating: 1.016µm
- plating_min_termination: 1.016µm
- single_ended: No
- net_weight: 1.847/g
- rohs_certificate: Available
- reach_svhc: Not Contained
- wire_type: UL 10002
