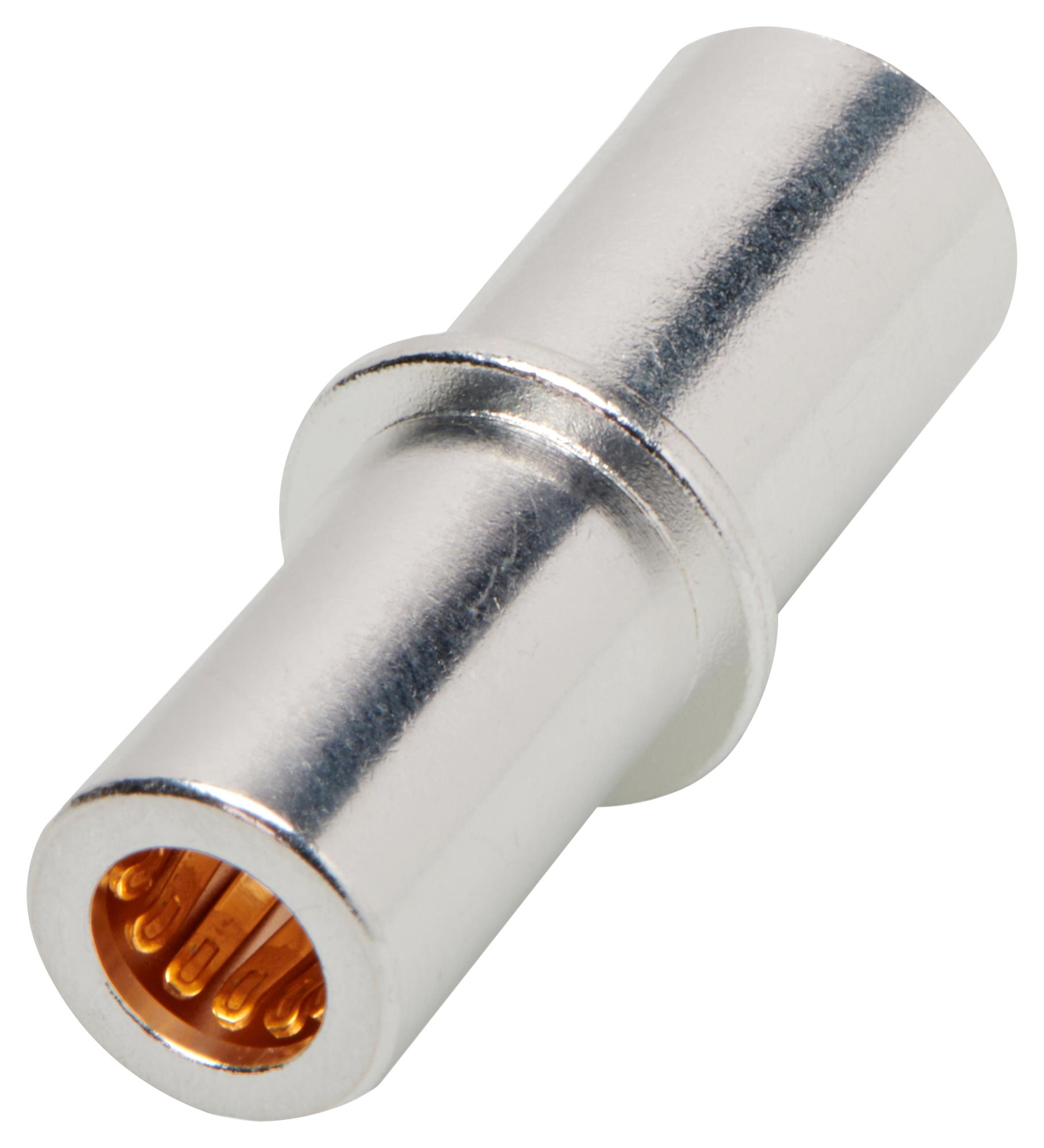

MOLEX 2046081006 High-Current Power Socket
The Coeur CST High-Current Female Crimp Socket is designed for high-current power applications with a 6.00mm diameter suitable for 6 AWG cable. Made from durable copper alloy with gold plating for reliable electrical contact and corrosion resistance, it supports up to 80.0A current at a maximum voltage of 300V. This crimp socket features a robust design rated for numerous mating cycles, ensuring a secure connection in power distribution systems. Compatible with 6.00mm male headers and receptacle crimp housings, it is ideal for industrial and electronic power connector assemblies.
MOLEX 2046081006 High-Current Power Socket Specifications:
- Product Family: Crimp Terminals
- Series: 204608
- Application: Power, Wire-to-Board
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold
- Material - Plating Termination: Silver
- Net Weight: 23.254 grams
- Packaging Type: Tray
- Termination Interface: Crimp or Compression
- Wire Insulation Diameter: N/A
- Wire Size AWG: 6
- Wire Size mm: N/A
- Current - Maximum per Contact: 80.0A
- Voltage - Maximum: 300V
- References: 2119410000-AS-000, 2119410000-PS-000
- RoHS Compliance: Yes
- EU ELV: Not Relevant
- EU RoHS: Compliant
- Halogen-Free: Yes
- Low-Halogen: Yes
- Mates With: 6.00mm Male Screw Attach Header 211937
- Use With: 6.00mm Receptacle Crimp Housing 211942, Retainer 211888
Buy the Buy Molex Female Crimp Socket Part Number 2046081006 Online
Purchase the Molex High-Current Power Socket designed for robust power distribution with a 6.00mm diameter suitable for 6 AWG cable. Made from corrosion-resistant copper alloy with gold plating, it supports up to 80A and 300V, making it ideal for industrial, electronic, and power applications. Featuring a durable design rated for numerous mating cycles, this socket guarantees reliable electrical connectivity. Compatible with specific headers and crimp housings, it ensures secure, long-lasting connections in demanding power distribution systems.
Get Molex 2046081006 today—built for high-current power contact reliability and long-lasting durability.
Frequently Asked Questions
Where can I buy MOLEX 2046081006?
You can click on the BUY or RFQ button to purchase 2046081006 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2046081006?
You can download the 2046081006 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2046081006?
MOLEX
