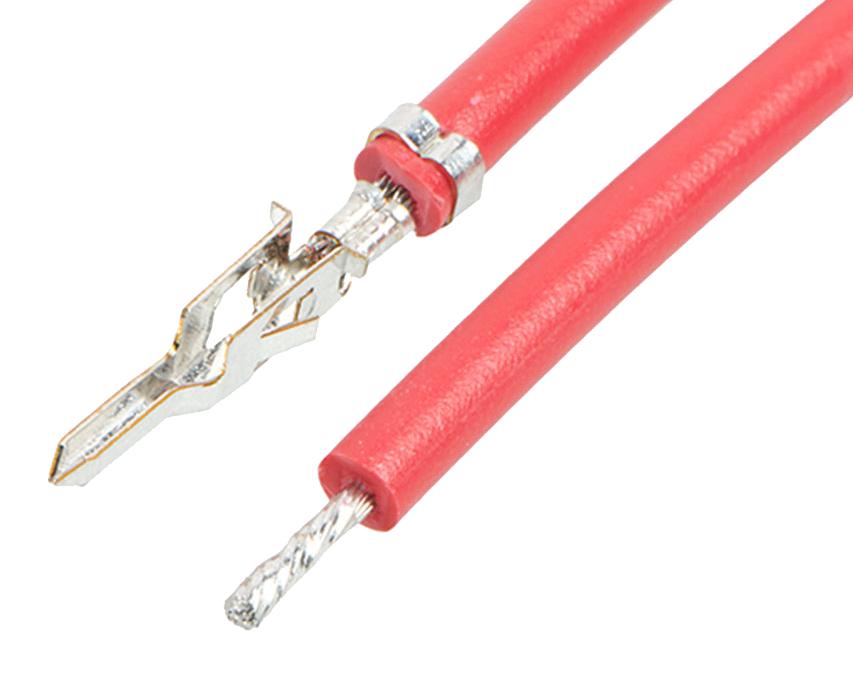

MOLEX 2153432115 Mini-Fit Jr. Pre-Crimped Lead
The MOLEX 215343-2115 is an off-the-shelf pre-crimped lead assembly, ideal for power and wire-to-wire applications. It combines a Mini-Fit Jr. male connector with a pigtail design, offering a convenient and reliable connection solution. The tin plating ensures excellent conductivity and corrosion resistance, while the red resin color provides easy identification. This assembly is suitable for various industrial and commercial applications where a pre-terminated connection is required.
MOLEX 2153432115 Mini-Fit Jr. Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Power, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 450.00mm
- circuits_loaded: 1
- color: Red
- material_metal: Brass
- plating_mating: Tin
- plating_termination: Tin
- net_weight: 7.371/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 18
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- upc: 193264560585
- sales_drawing: 2153431111-000
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
