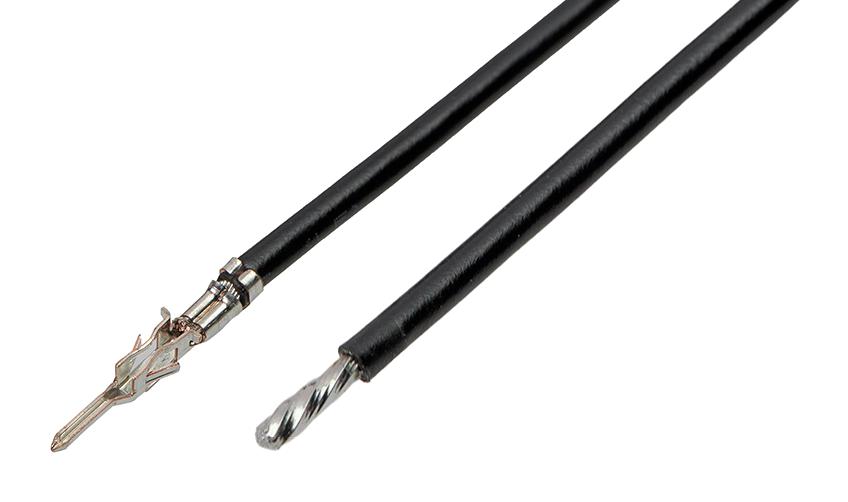

MOLEX 2147631123 Micro-Fit 3.0 Pre-Crimped Lead
The MOLEX 2147631123 is a pre-crimped lead assembly, specifically a Micro-Fit 3.0 male-to-pigtail configuration. This lead is tin-plated, offering good solderability and corrosion resistance. It's designed for power applications and wire-to-wire connections, commonly used in automotive, industrial, and consumer electronics. The lead has a length of 225mm, an 18 AWG wire size, and is suitable for use with Micro-Fit 3.0 plug housings.
Authorized Distributors
Source:Mouser Electronics
Part No:214763-1123
Stock:25
Inv Date:05-30-2026
Price: Unit price: $1.19
Buy/RFQ:
Source:Master Electronics
Part No:214763-1123
Stock:315
Inv Date:05-29-2026
Price: Unit price: $0.649
Buy/RFQ:
Source:Onlinecomponents.com
Part No:214763-1123
Stock:315
Inv Date:05-29-2026
Price: Unit price: $0.649
Buy/RFQ:
MOLEX 2147631123 Micro-Fit 3.0 Pre-Crimped Lead Specifications:
- status: Active
- overview: Off-the-Shelf Pre-Crimped Leads
- description: Pre-Crimped Lead Micro-Fit 3.0 Male-to-Pigtail, Tin (Sn) Plated, 225.00mm Length, 18 AWG, Black
- product_family: Cable Assemblies
- series: 214763
- application: Power, Wire-to-Wire
- assembly_configuration: Pre-crimped Lead Only
- connector_to_connector: Micro-Fit 3.0 Crimp Terminals
- upc: 193264575046
- cable_length: 225.00mm
- circuits_loaded: 1
- color_resin: Black
- gender: Male-Pigtail
- material_metal: Phosphor Bronze
- material_plating_mating: Tin
- material_plating_termination: Tin
- net_weight: 2.600/g
- plating_min_mating: 1.016µm
- plating_min_termination: 1.016µm
- single_ended: Yes
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max: 1.85mm
- wire_size_awg: 18
- wire_cable_type: UL 10002
- current_maximum_per_contact: 8.5A
- sales_drawing: 2147631121-000
- eu_elv: Not Relevant
- eu_rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- use_with_housings: 43020, 43640, 44300, 46625
