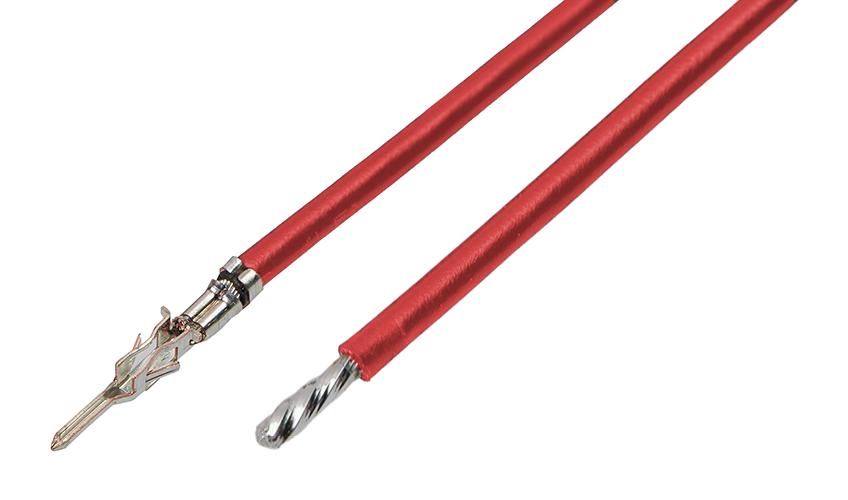

MOLEX 2147632122 Power Pigtail Connector
The Micro-Fit 3.0 Male-to-Pigtail is a pre-crimped lead with a length of 150mm, featuring tin-plated phosphor bronze contacts suitable for power and wire-to-wire applications. This high-quality connector is designed for reliable electrical connections in industrial and electronic systems, supporting up to 8.5A current per contact. Its red color distinguishes it clearly in assemblies. Compatible with Micro-Fit 3.0 plug housings, it offers easy crimp or compression termination methods, ensuring safe and stable connections for wiring harnesses and power distribution modules.
MOLEX 2147632122 Power Pigtail Connector Specifications:
- Cable Length: 150.00mm
- Color - Resin: Red
- Gender: Male-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Wire Size AWG: 18
- Wire Insulation Diameter: 1.85mm max.
- Current - Maximum per Contact: 8.5A
- Reference - Drawing Numbers: 2147631121-000
- Application: Power, Wire-to-Wire
- Assembly Configuration: Connector to Connector
- Supported Connectors: Micro-Fit 3.0 plug housings
- RoHS Compliance: Yes
- UL Standard: 10002
- Net Weight: 1.786g
Buy the Molex 2147632122 – Reliable Power Connector for Industrial Applications
Secure your power wiring with the Molex Micro-Fit 3.0 male-to-pigtail connector. Featuring 18 AWG tin-plated contacts and a 150mm length, it offers dependable, high-current connections ideal for industrial automation, power distribution, and wiring harness applications. Its easy crimp termination, durable materials, and RoHS compliance make it an excellent choice for reliable electrical performance. Order online now to streamline your assembly process with this high-quality, ready-to-use power connector that ensures safety and efficiency in your projects.
Order your Molex 2147632122 Micro-Fit 3.0 male-to-pigtail today and ensure reliable, easy-to-install power connections for your industrial projects.
