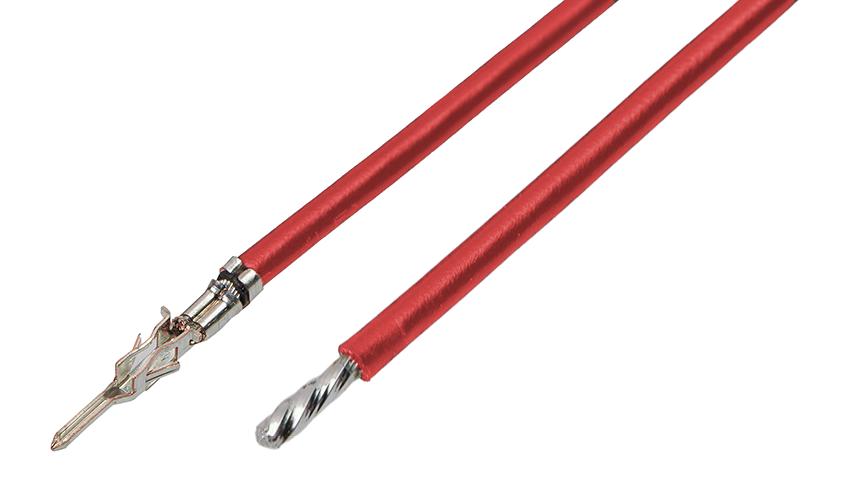

MOLEX 2147632205 Power Lead
The Micro-Fit 3.0 Male-to-Pigtail is a high-quality pre-crimped lead designed for power applications and reliable wire-to-wire connections. With a length of 450mm, it offers easy installation with 22 AWG copper conductors and gold plating for corrosion resistance. This red-colored, male connector is compatible with Micro-Fit 3.0 plug housings, ensuring a secure and efficient electrical connection. Suitable for automation, power distribution, and control systems, it provides an maximum current of 8.5A per contact and meets industry standards for durability and safety.
MOLEX 2147632205 Power Lead Specifications:
- Cable Length: 450.00mm
- Wire Size: 22 AWG
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Color - Resin: Red
- Current - Maximum per Contact: 8.5A
- Termination Interface Style: Crimp or Compression
- Wire Insulation Diameter: 1.85mm max.
- Net Weight: 2.053g
- Compatibility: Micro-Fit 3.0 plug and socket housings
- RoHS Compliant: Yes
- Halogen-Free: No
- Status: Active for power and wire-to-wire connections
Buy the Molex 2147632205 – Reliable Power Lead for Industrial Applications
Purchase the Molex Power Lead today for reliable, high-quality power connections in automation, control, and industrial applications. With 22 AWG copper conductors, gold-plated contacts, and a length of 450mm, this male-to-pigtail offers excellent current capacity up to 8.5A per contact. Its durable construction, secure crimp interface, and compatibility with Micro-Fit 3.0 housings ensure a safe and efficient electrical connection. Perfect for demanding industrial environments requiring reliable power distribution and quick installation.
Get Molex 2147632205 today—built for precision, durability, and high-current power connections in industrial systems.
