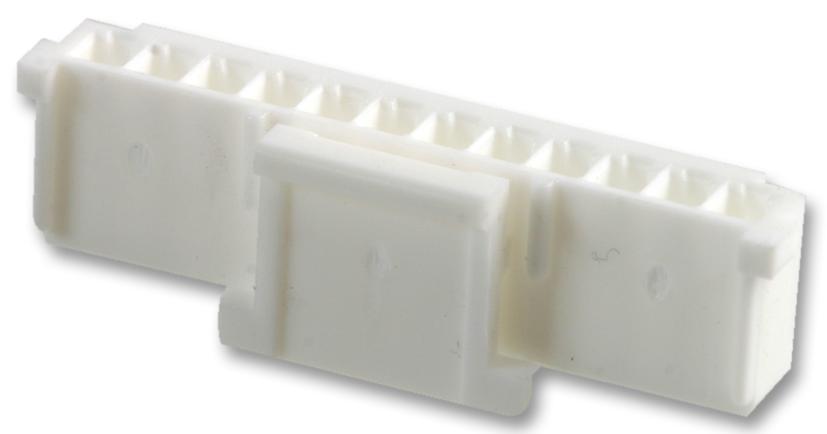

MOLEX 355071100 Wire-to-Board Connector
The Sherlock Wire-to-Board Connector System offers reliable 2.00mm pitch housing designed for easy connections in electronic assemblies. Featuring 11 circuits with a natural color resin, this receptacle connector is UL and CSA certified, RoHS compliant, halogen-free, and rated for operating temperatures from -40°C to +105°C. It is suitable for applications requiring strong, secure connections with maximum current of 2.0A per contact. The connector’s design ensures easy mating, stackability, and compatibility with a variety of Sherock headers and crimp terminals for versatile electronic device assembly.
MOLEX 355071100 Wire-to-Board Connector Specifications:
- Pitch - Mating Interface: 2.00mm
- Circuits (maximum): 11
- Color - Resin: Natural
- Flammability: UL 94V-0
- Material - Resin: Polyester
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 2.0A
- Packaging Type: Bag
- Ingress Protection: Not specified
- Gender: Receptacle
- Net Weight: 0.453 g
- RoHS: Yes
- CSA: Yes
- UL: Yes
- Halogen-Free: No
- Lock to Mating Part: None
- Glow-Wire Capable: No
- Stackable: No
- Panel Mount: No
- Application: Wire-to-Board Connection
Buy the Molex Series Sherlock Wire-to-Board Connector: 0355071100
Enhance your electronic projects with the Molex Sherlock wire-to-board connector. Designed with a 2.00mm pitch and 11 circuits, it offers secure, reliable connections suitable for various applications. UL and CSA certified, RoHS compliant, and operating within -40°C to +105°C, this connector ensures durability and safety. Easy to mate and stack, it fits seamlessly with compatible headers and crimp terminals. Trusted for efficiency and durability, it’s an ideal choice for professional electrical and electronic assembly needs.
Get Molex Sherlock Wire-to-Board Connector 0355071100 today—built for precision and long-lasting durability in electronic assemblies.
Frequently Asked Questions
Where can I buy MOLEX 355071100?
You can click on the BUY or RFQ button to purchase 355071100 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 355071100?
You can download the 355071100 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 355071100?
MOLEX
