MOLEX 39299187 Power Connector
The Mini-Fit Jr. Vertical Header with a 4.20mm pitch is a power connector designed for wire-to-board applications. It features dual rows with 18 circuits, snap-in plastic peg PCB lock, and is tin-plated with natural color. Rated for up to 9A per contact and 600V, it supports operating temperatures from -40°C to +105°C. This shrouded, polarized connector is compatible with standard Mini-Fit female terminals and is RoHS compliant, suitable for high-density power distribution in various electronic assemblies.
MOLEX 39299187 Power Connector Specifications:
- Pitch: 4.20mm
- Number of Circuits: 18
- Number of Rows: 2
- Current per Contact: 9.0A
- Maximum Voltage: 600V
- Operating Temperature Range: -40°C to +105°C
- Material - Resin: Flammability UL 94V-0, Low-Halogen, Green Image Not Relevant
- Plating Min - Mating: 0.889μm, Plating Min - Termination: 0.889μm
- PCB Thickness - Recommended: 1.60mm
- Termination Interface: Through Hole
- Color: Natural
- Surface Mount Compatibility: No
- Shrouded: Fully
- Stackable: No
- PCB Retention: Yes
- Connector Orientation: Vertical
- Packaging: Tray
- Durability (mating cycles max): Not specified, Typically high
- Agency Certifications: CSA, UL
- Material - Metal: Not specified
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin

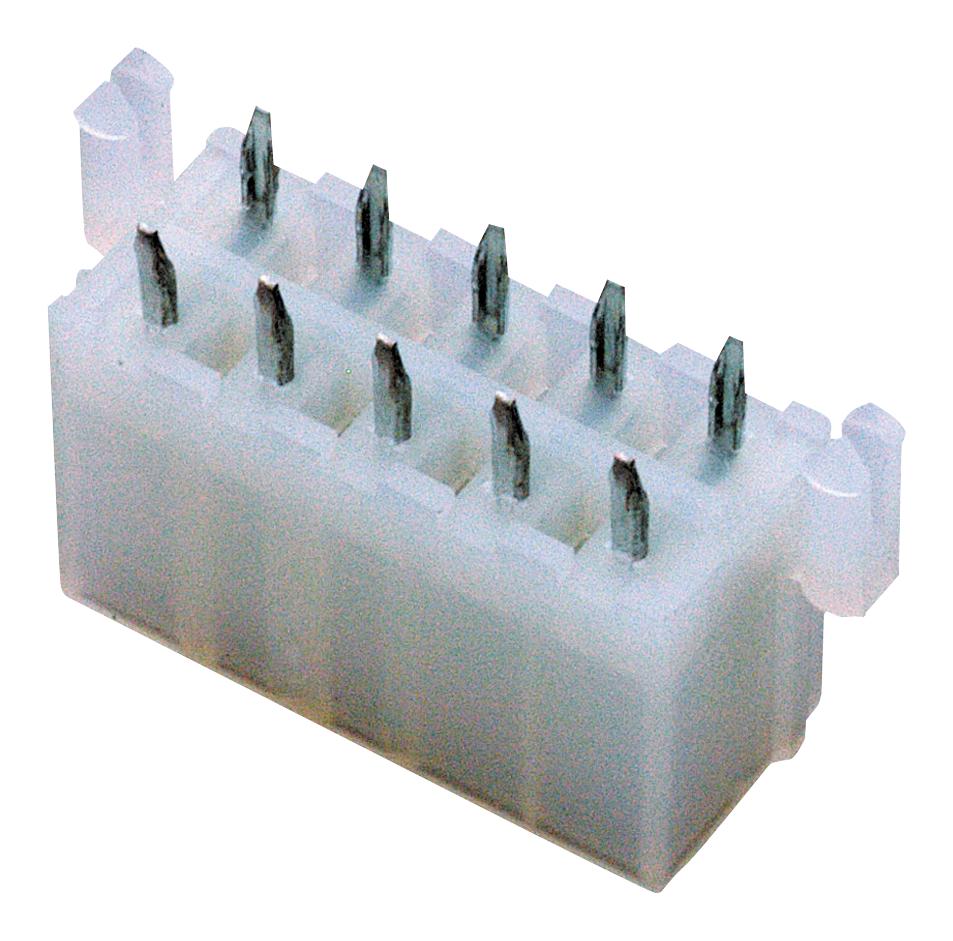

Buy the Buy Molex Mini-Fit Jr. Power Connector Part Number 0039299187 Online
Enhance your electronic projects with the Molex Power Connector featuring a 4.20mm pitch, dual row, 18 circuits, and robust tin-plated contacts. Designed for wire-to-board connections, it supports up to 9A per contact and 600V, suitable for demanding power applications. RoHS compliant and operating efficiently between -40°C to +105°C, this fully shrouded, polarized connector offers high durability and reliable performance. Purchase online now to ensure your assemblies are equipped with a high-quality, durable power connection solution that guarantees safety and efficiency.
Get Molex 0039299187 today—built for power distribution and long-lasting durability in electronic assemblies.
Frequently Asked Questions
Where can I buy MOLEX 39299187?
You can click on the BUY or RFQ button to purchase 39299187 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 39299187?
You can download the 39299187 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 39299187?
MOLEX
