MOLEX 2147632225 Power Connector
This pre-crimped lead is a Micro-Fit 3.0 male-to-pigtail connector, 450mm long, with 18 AWG wire, gold-plated contacts, and a red insulation. Designed for power and wire-to-wire applications, it features a crimp or compression termination interface, providing reliable electrical connections. With a maximum current of 8.5A per contact, it is compatible with Micro-Fit 3.0 plug housings and suitable for use in various industrial and electronic assembly tasks. The lead is RoHS and REACH compliant, ensuring environmental safety and high quality standards.
MOLEX 2147632225 Power Connector Specifications:
- Product Family: Power, Wire-to-Wire
- Application: Assembly connection
- Cable Length: 450.00mm
- Circuits (Loaded): 1
- Color - Resin: Red
- Gender: Male-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Wire Insulation Diameter: 1.85mm max.
- Wire Size AWG: 18
- Wire/Cable Type: Power wire
- Current - Maximum per Contact: 8.5A
- RoHS and REACH Compliant: Yes
- Applicable with: Micro-Fit 3.0 Plug Housings 43020, 43640; Micro-Fit BMI Plug Housings 44300, 46625
- Design: Off-the-Shelf Pre-Crimped Leads, Gold-plated contacts for corrosion resistance
- Net Weight: 5.02 g

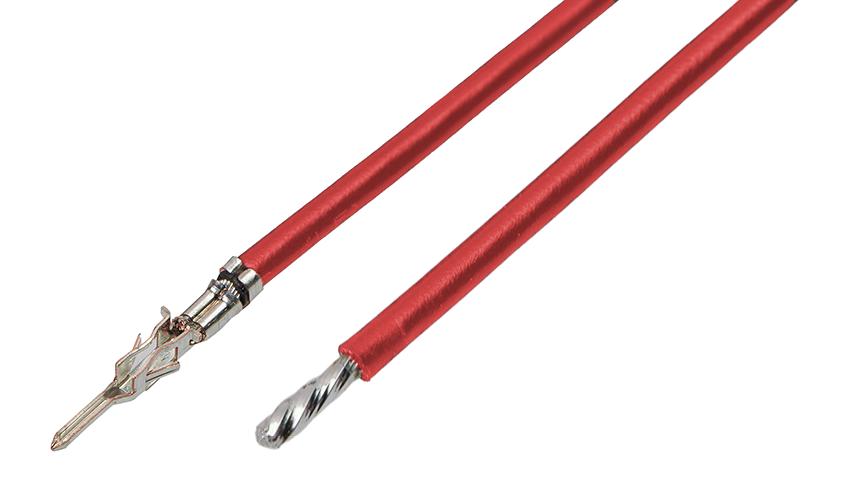

Buy the Molex 214763 U–2013 Reliable Power Connector for Industrial Applications
Discover the high-quality Molex power connector, designed for industrial use with 450mm length, 18 AWG wiring, and gold-plated contacts for optimal conductivity. This micro-fit 3.0 male-to-pigtail offers secure, reliable connections suitable for various power and wire-to-wire assembly needs. Its robust design ensures long-lasting performance, RoHS and REACH compliance, and compatibility with multiple Micro-Fit 3.0 housing options. Perfect for electronics, automation, and industrial power systems, this connector provides efficient and durable electrical connectivity. Shop now online to enhance your projects.
Get Molex 214763 today—built for reliable power transmission in industrial and electronic applications with durable gold-plated contacts.
Frequently Asked Questions
Where can I buy MOLEX 2147632225?
You can click on the BUY or RFQ button to purchase 2147632225 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2147632225?
You can download the 2147632225 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2147632225?
MOLEX
