MOLEX 2149212215 PicoBlade Connector

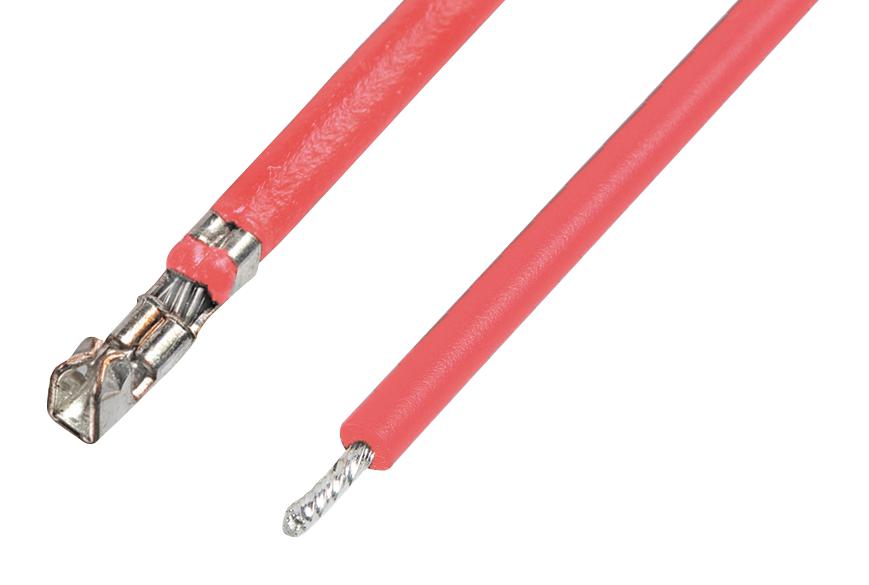

This pre-crimped lead features a PicoBlade female-to-pigtail connection, gold-plated for enhanced conductivity, with a length of 450.00mm. Designed for reliable, off-the-shelf assembly in electronic applications, it is suitable for connecting PicoBlade crimp terminals to other components. The lead's construction ensures durability with phosphor bronze metal and tin plating, providing excellent corrosion resistance. Its compact design, 26 AWG wire size, and UL 1061 rating support maximum currents of 1.0A at 125V AC/DC, making it ideal for industrial and electronic connector projects.
MOLEX 2149212215 PicoBlade Connector Specifications:
- Cable Length: 450.00mm
- Circuits (Loaded): 1
- Color - Resin: Black
- Gender: Female-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Wire Size AWG: 26
- Wire Insulation Diameter: 1.04mm max.
- Voltage - Maximum: 125V AC/DC
- Current - Maximum per Contact: 1.0A
- Packaging Type: Bag
- Pitch - Mating Interface: 1.25mm
- RoHS: Compliant
- Halogen-Free: No
- UL Listing: UL 1061
Buy the Molex 2149212215 – Reliable Connector for Industrial Applications
Buy the Molex PicoBlade Connector series 2149212215 online today to enhance your electronic and industrial assembly projects. This gold-plated female-to-pigtail lead offers superior conductivity and durability. With a 450mm length and 26 AWG wire size, it provides reliable connections for high-performance, safety, and long-term stability. Ideal for control systems, automation, and versatile electronic applications, order now to benefit from quick delivery and expert support ensuring your project’s success.
Order your Molex 2149212215 series pre-crimped PicoBlade cable assembly today and ensure dependable, high-quality connections for your industrial projects.
Frequently Asked Questions
Where can I buy MOLEX 2149212215?
You can click on the BUY or RFQ button to purchase 2149212215 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2149212215?
You can download the 2149212215 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2149212215?
MOLEX
