MOLEX 923151408 Ribbon Cable Assembly
The Picoflex ribbon cable assembly offers a reliable, off-the-shelf solution with polarized connectors and a one-piece housing for secure cable retention. Designed for versatile applications including consumer electronics, medical devices, and industrial automation, it features dual-beam contacts for four-point connectivity, visual inspection windows, and optional gold plating for enhanced durability. Constructed with polyester resin, phosphor bronze contacts, and tin plating, it supports voltages up to 250V, currents up to 1.2A, and withstands temperatures from -40°C to +105°C. Compatible with various headers, it provides a dependable and easy-to-manage interconnect option.
MOLEX 923151408 Ribbon Cable Assembly Specifications:
- Cable Length: 80.00mm
- Circuits: 14
- Gender: Female-Female
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Net Weight: 3.576g
- Number of Rows: 2
- Pitch - Mating Interface: 1.27mm
- Plating min - Mating: 2.032um
- Plating min - Termination: 2.032um
- Wire Size: 28 AWG
- Electrical Current: 1.2A per contact
- Maximum Voltage: 250V
- Temperature Range: -40°C to +105°C
- Rated for at least 30 mating cycles
- Connector Type: IDT or Pierce termination interface
- Construction: Polyester housing with phosphor bronze contacts and tin plating

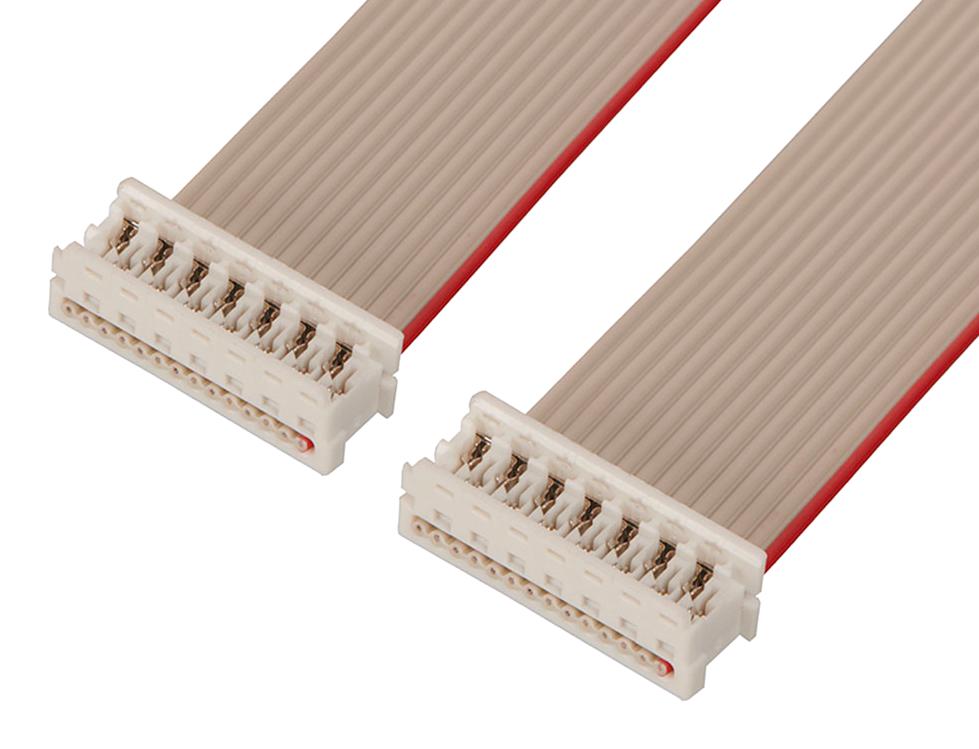

Buy the Buy Molex Picoflex Part Number 923151408 Online
Purchase the Molex Picoflex Ribbon Cable Assembly online today to ensure secure and reliable connections in your electronic projects. Featuring polarized connectors, dual-beam contacts, and a durable polyester housing, this assembly is designed for versatility and ease of use. It supports up to 250V and 1.2A current, with a 1.27mm pitch and 28 AWG wire gauge. Ideal for consumer electronics, medical devices, and automation systems, it offers quick installation, visual inspection access, and optional gold plating for enhanced durability. Get yours now for dependable performance.
Buy Molex 923151408 now and experience unmatched reliability and flexible ribbon cable assembly for your electronic connectivity needs.
Frequently Asked Questions
Where can I buy MOLEX 923151408?
You can click on the BUY or RFQ button to purchase 923151408 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 923151408?
You can download the 923151408 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 923151408?
MOLEX
