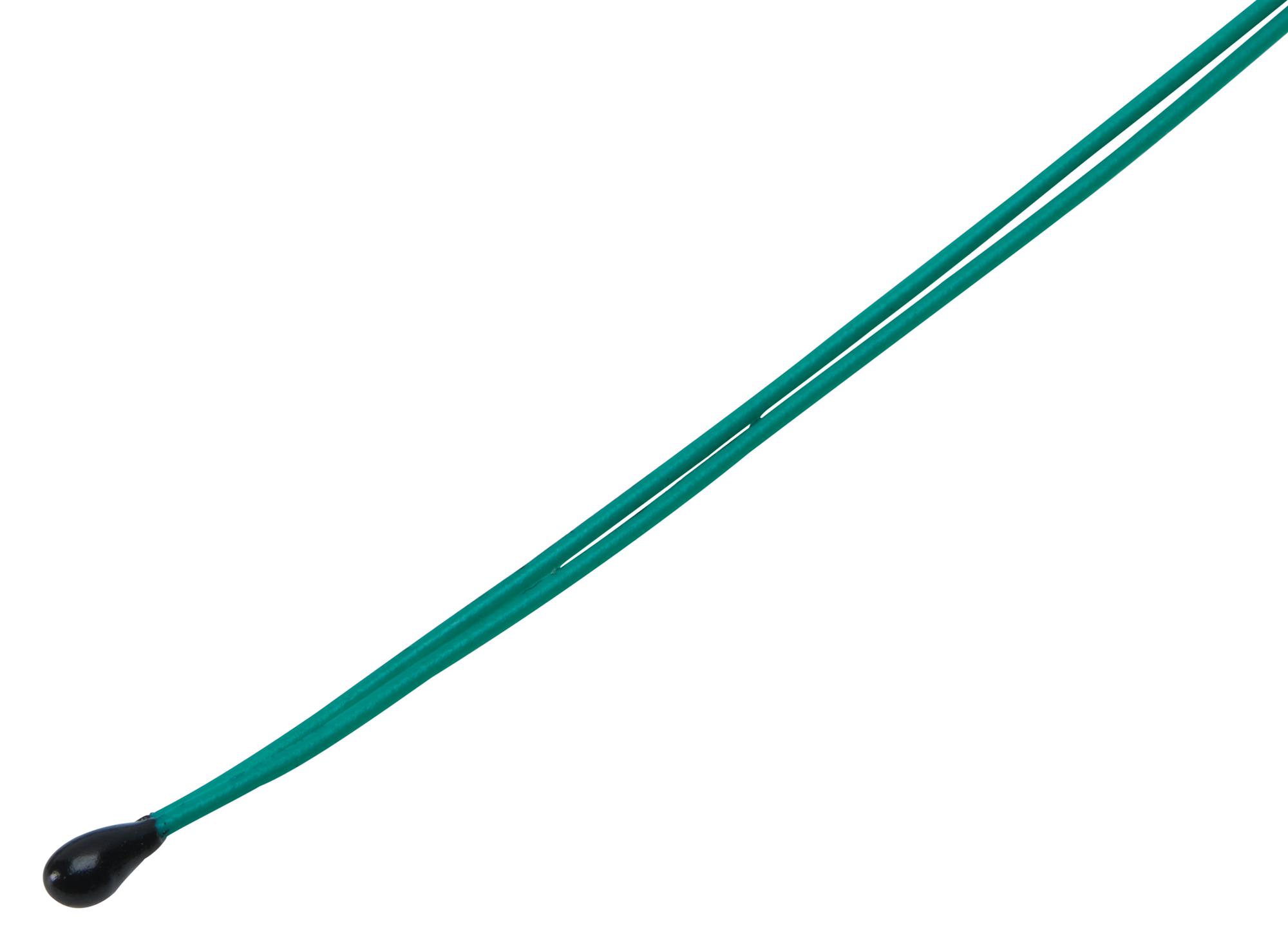

MOLEX 2152703607 NTC Temperature Sensor Cable
The MOLEX 215270-3607 is a temperature sensor cable assembly designed for applications requiring precise temperature monitoring. This cable features an NTC thermistor encapsulated in epoxy, providing durability and protection. With a length of 100mm and a beta value of 3600, it offers accurate temperature readings across a range of conditions. The 10k ohm resistance at 25°C with 1% tolerance ensures reliable performance. This assembly is ideal for industrial automation, HVAC systems, and other applications where temperature control is critical.
MOLEX 2152703607 NTC Temperature Sensor Cable Specifications:
- Overview: Temperature Sensor Cable Assemblies
- Product Family: Cable Assemblies
- Series: 215270
- Application: Temperature Sensing
- Assembly Configuration: Single Ended
- Connector: NTC Thermistor-to-Pigtail
- Beta Value (K): 3600
- Resistance at 25°C (kohms): 10
- Resistance Tolerance (%): 1
- Cable Length: 100.00mm
- Circuits (Loaded): 1
- Color - Resin: Green
- Lock to Mating Part: Yes
- Net Weight: 0.320/g
- Packaging Type: Bag Single Ended
- Wire Size AWG: 28
- UPC: 195842044579
- EU ELV: Not Relevant
- EU RoHS: Compliant with Exemption 15(a)
- REACH SVHC: Not Reviewed
- Halogen-Free: Not Reviewed
- RoHS Phthalates: Not Contained
- Sales Drawing: 2152703607-000
Buy the 215270-3607 MOLEX NTC Temperature Sensor Cable | myMectronic
Purchase the MOLEX 215270-3607 NTC Temperature Sensor Cable securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2152703607?
You can click on the BUY or RFQ button to purchase 2152703607 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2152703607?
You can download the 2152703607 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2152703607?
MOLEX
