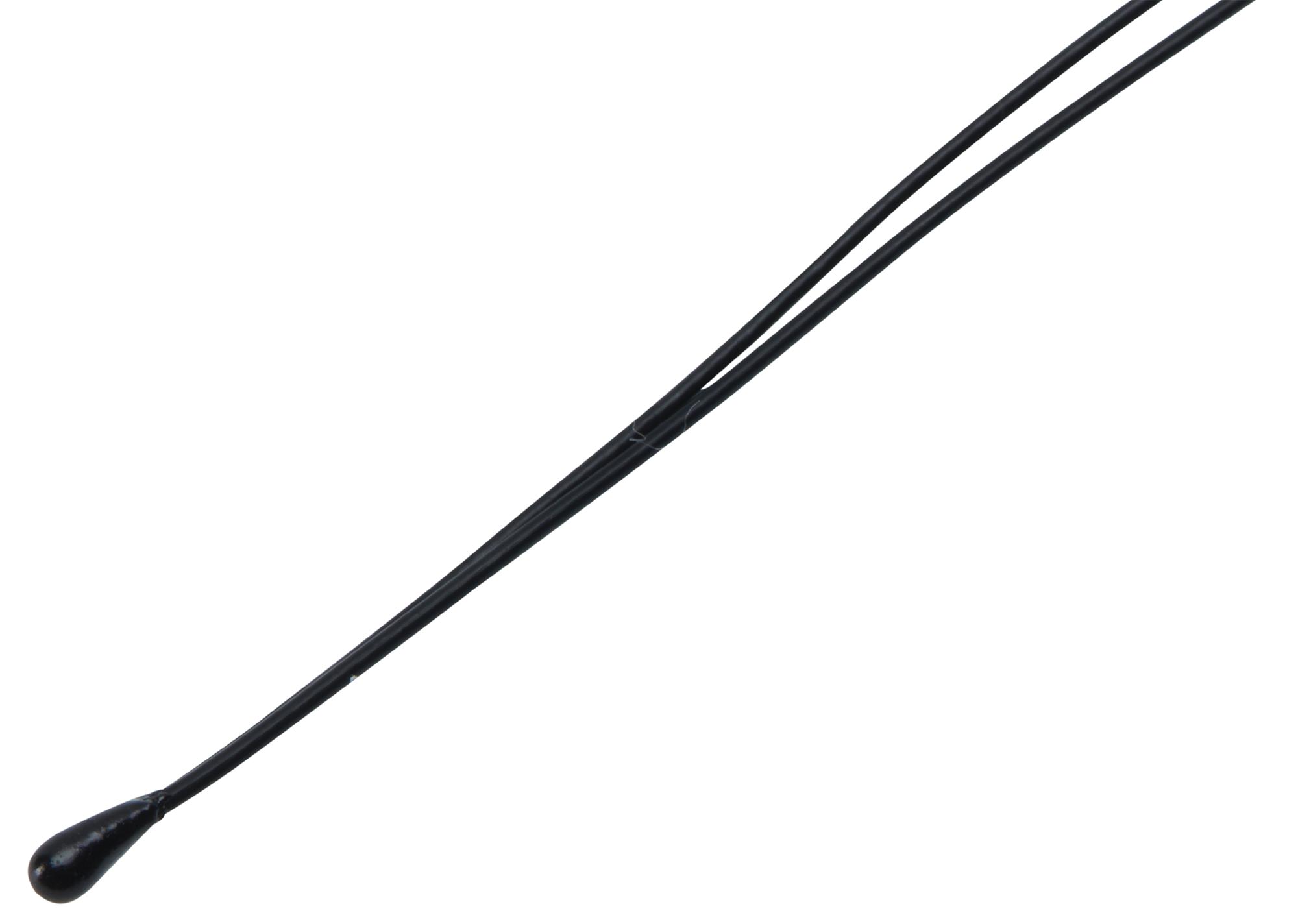

MOLEX 2152723303 NTC Temperature Sensor Cable
The MOLEX 215272-3303 is a temperature sensor cable assembly designed for applications requiring precise temperature monitoring. This cable features an epoxy-coated NTC thermistor, providing reliable and accurate temperature readings. With a length of 25.00mm and a 3982 beta value, it's suitable for various industrial and commercial uses. The 3k# resistance at 25°C with 1% tolerance ensures consistent performance. It is RoHS compliant and features a single-ended configuration.
MOLEX 2152723303 NTC Temperature Sensor Cable Specifications:
- Overview: Temperature Sensor Cable Assemblies
- Product Family: Cable Assemblies
- Series: 215272
- Application: Temperature Sensing
- Assembly Configuration: Single Ended
- Connector: NTC Thermistor-to-Pigtail
- Beta Value (K): 3982
- Resistance at 25°C (kohms): 3
- Resistance Tolerance (%): 1
- Cable Length: 25.00mm
- Circuits (Loaded): 1
- Color - Resin: Black
- Lock to Mating Part: Yes
- Net Weight: 0.110/g
- Packaging Type: Bag Single Ended
- Wire Size AWG: 28
- UPC: 193264876297
- EU ELV: Not Relevant
- EU RoHS: Compliant with Exemption 15(a)
- REACH SVHC: lead
- Halogen-Free Status: Not Reviewed
