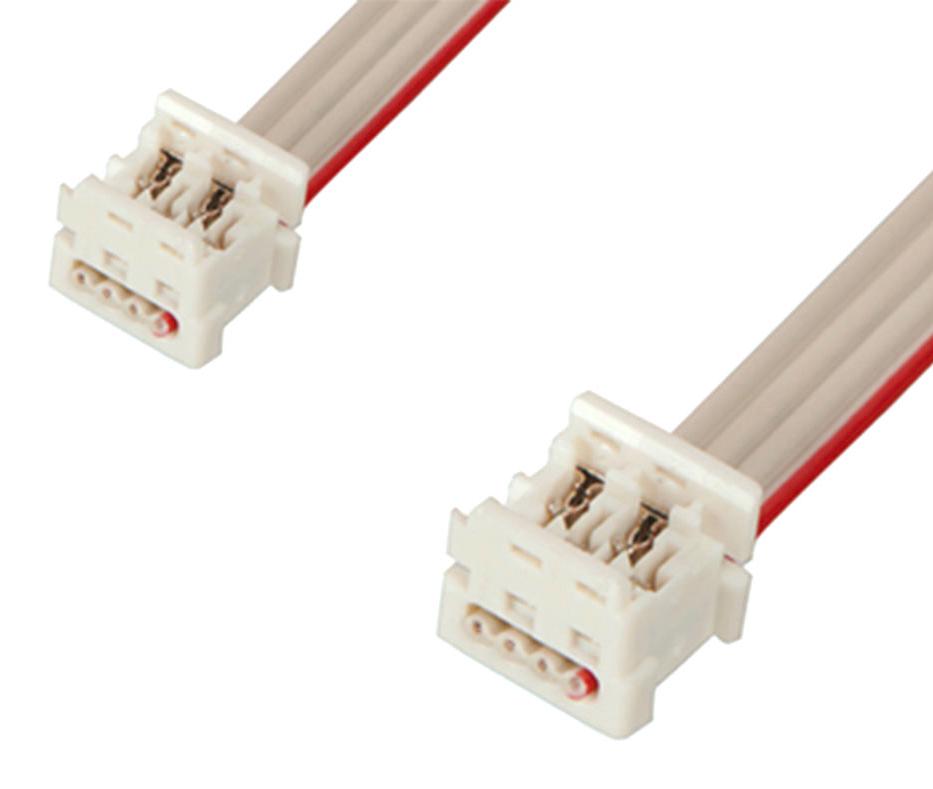

MOLEX 923150408 Ribbon Cable Assembly
The Picoflex ribbon cable assembly is a ready-to-use, off-the-shelf solution with a polarized connector design to prevent mis-mating, offering secure cable retention and easy inventory management. Featuring dual-beam contacts for four contact points per circuit, it ensures reliable connections in applications like consumer electronics, industrial automation, medical devices, and renewable energy systems. The polyester housing, phosphor bronze contacts, tin plating, and optional gold plating provide durability and reduced fretting in high-vibration environments. With a maximum of 250V and 1.2A, operating temperature from -40°C to +105°C, and support for 30 mating cycles, it is UL and CSA certified for quality assurance.
MOLEX 923150408 Ribbon Cable Assembly Specifications:
- Cable Length: 80.00mm
- Circuits: 4
- Color - Resin: Natural
- Gender: Female-Female
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Net Weight: 0.654 grams
- Wire Insulation Diameter: 1.27mm
- Wire Size AWG: 28
- Waterproof / Dustproof: No
- Current - Maximum per Contact: 1.2A
- Voltage - Maximum: 250V
- Temperature Range: -40°C to +105°C
- Mating Cycles: Minimum 30
- Connector Type: Off-the-shelf ribbon cable assembly with polarized connector
- Housing Material: Polyester
- Contact Material: Phosphor Bronze
- Plating: Tin with optional gold
- Certification: UL, CSA
- Contacts: Dual-beam for four contact points per circuit
- Application: Consumer electronics, industrial automation, medical devices, renewable energy systems
Buy the Molex 0923150408 – Reliable Ribbon Cable for Industrial Applications
Order Molex 0923150408 ribbon cable assembly online today and enjoy a high-quality, ready-to-use solution with polarized connectors, dual-beam contacts, and robust construction, ensuring reliable electrical connections in a wide range of industrial, medical, and consumer electronic applications. Featuring UL and CSA certification, a temperature range of -40°C to +105°C, and support for 30 mating cycles, this assembly guarantees durability and optimal performance. Secure your supply chain with our convenient online purchase option for quick delivery and consistent quality assurance.
Buy Molex 0923150408 now and experience unmatched reliability and performance in your electronic assembly or industrial automation projects.
Frequently Asked Questions
Where can I buy MOLEX 923150408?
You can click on the BUY or RFQ button to purchase 923150408 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 923150408?
You can download the 923150408 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 923150408?
MOLEX
