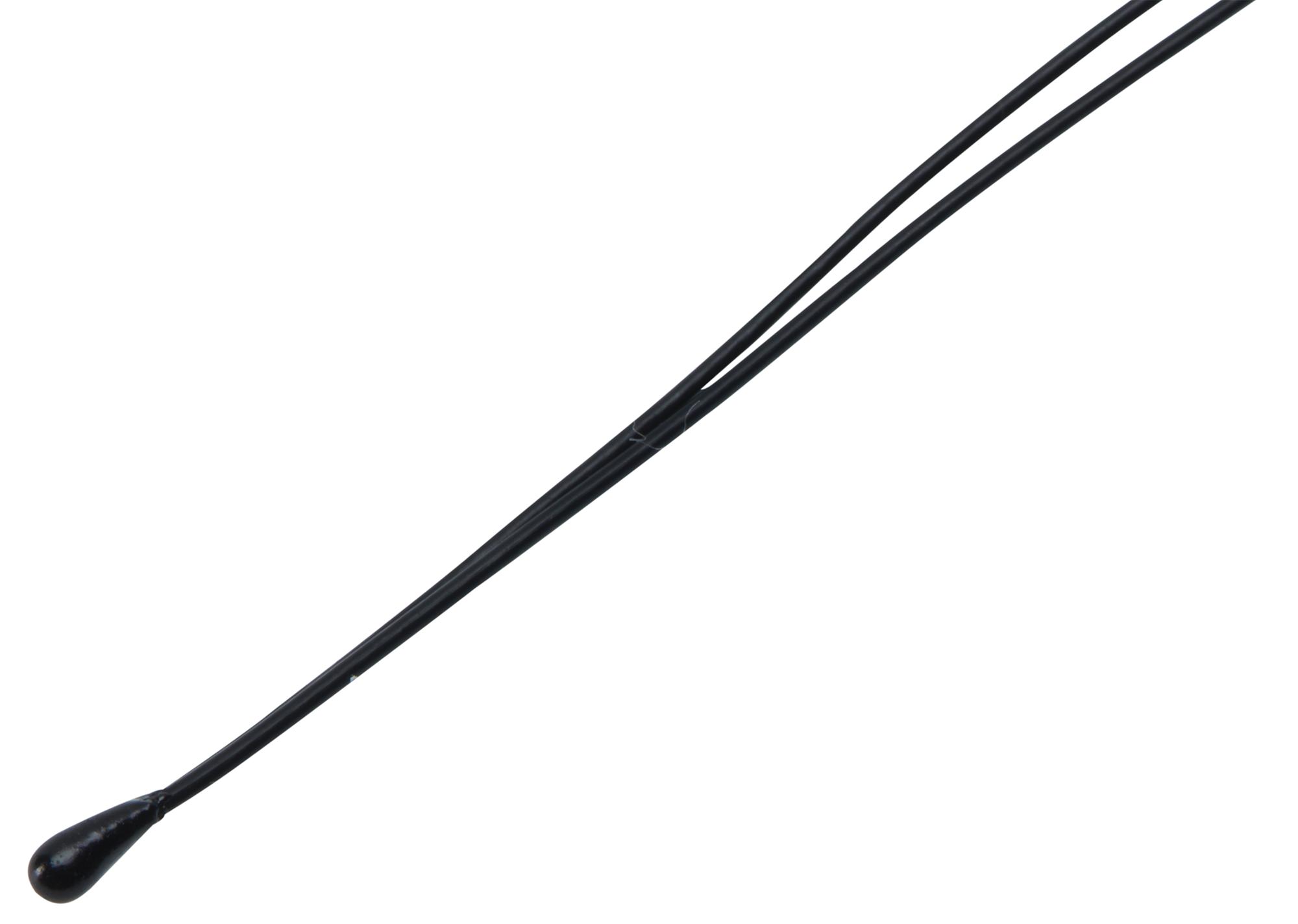

MOLEX 2152723605 NTC Temperature Sensor Cable
The MOLEX 215272-3605 is a temperature sensor cable assembly designed for precise temperature monitoring in various industrial applications. This cable features an NTC thermistor encapsulated in epoxy, providing durability and protection. With a 40mm length and a 10kΩ resistance at 25°C, it offers accurate and reliable temperature readings. The cable is RoHS compliant and suitable for use in environments requiring temperature sensing capabilities.
MOLEX 2152723605 NTC Temperature Sensor Cable Specifications:
- overview: Temperature Sensor Cable Assemblies
- description: Epoxy Coated NTC Thermistor Cables
- length: 40.00mm
- beta_value: 3982
- resistance_at_25c: 10kΩ
- resistance_tolerance: 1%
- color_resin: Black
- cable_length: 40.00mm
- circuits_loaded: 1
- gender: N/A
- lock_to_mating_part: Yes
- net_weight: 0.150/g
- packaging_type: Bag Single Ended
- wire_size_awg: 28
- upc: 193264680924
- series: 215272
- elv_compliance: Not Relevant
- rohs_compliance: Compliant with Exemption 15(a)
- reach_svhc: lead
- halogen_free_status: Not Reviewed
