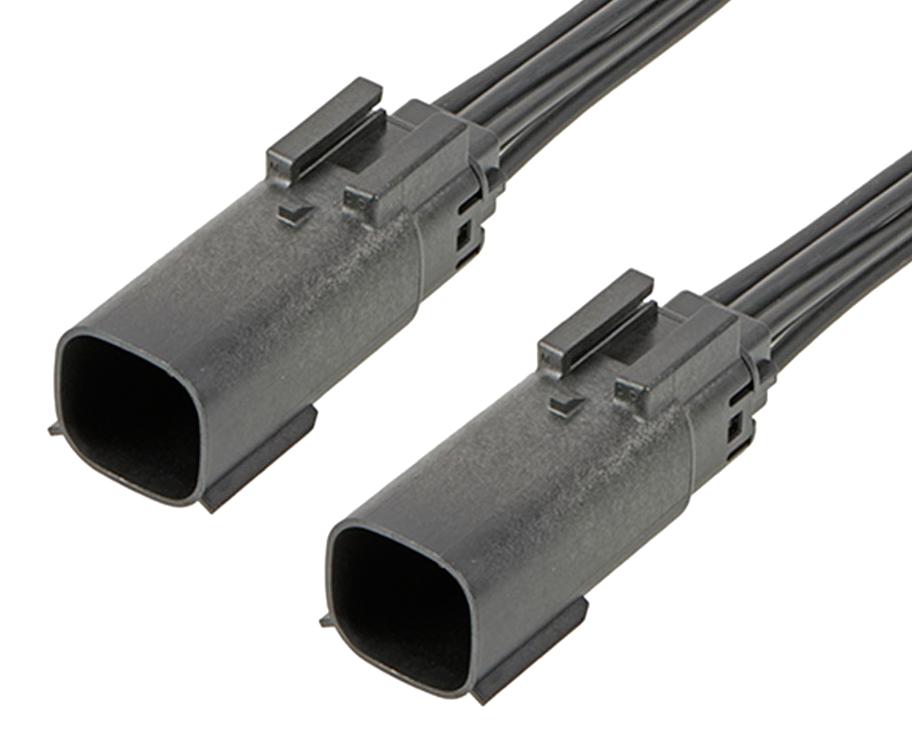

MOLEX 2162871062 MX150 Male-to-Male Cable Assembly
The MOLEX 216287-1062 is a robust MX150 male-to-male off-the-shelf cable assembly designed for demanding power and signal transmission applications. With a 300mm length and 6 circuits, this assembly provides a secure and reliable connection between MX150 connectors. The tin plating on both mating and termination interfaces ensures excellent conductivity and corrosion resistance. Constructed with a high-performance alloy (HPA) and SPS/Nylon resin, this cable assembly is built to withstand harsh environments and deliver consistent performance in wire-to-board and wire-to-wire configurations.
MOLEX 2162871062 MX150 Male-to-Male Cable Assembly Specifications:
- overview: Off-the-Shelf Cable Assemblies
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: MX150-to-MX150
- cable_length: 300.00mm
- circuits_loaded: 6
- color_resin: Black
- gender: Male-Male
- material_metal: High Performance Alloy (HPA)
- material_plating_mating: Tin (Sn)
- material_plating_termination: Tin (Sn)
- material_resin: SPS/Nylon
- net_weight: 628.800 g
- number_of_rows: 2
- packaging_type: Bag
- pitch_mating_interface: 3.50mm
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max: 2.70mm
- wire_size_awg: 14
- wire_cable_type: TXL Stranded
- current_maximum_per_contact: 22.0A
- voltage_maximum: 14V DC
- upc: 193264714698
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
