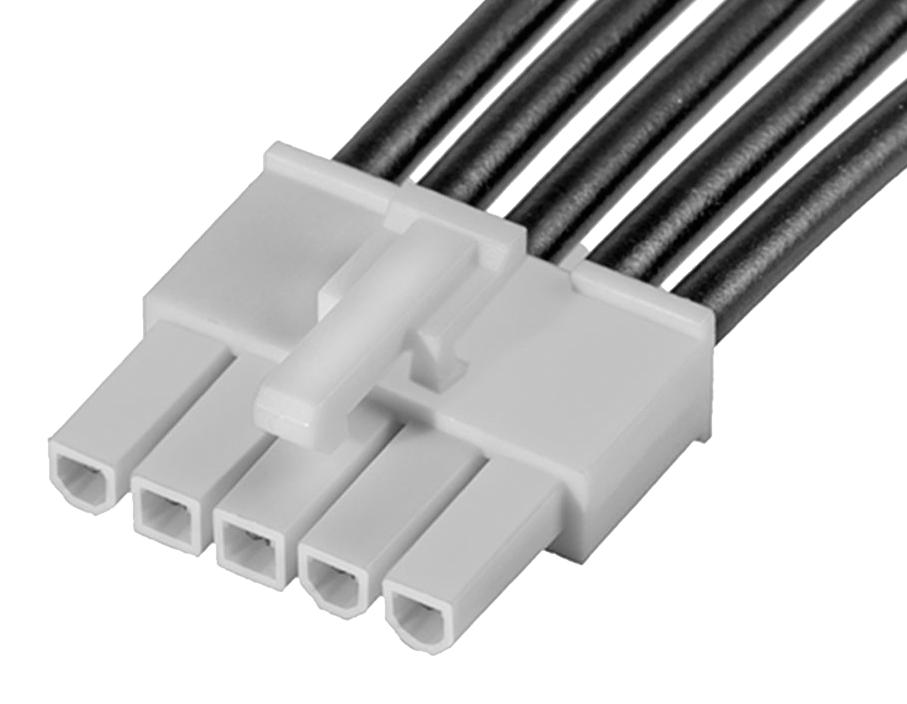

MOLEX 2153232051 Mini-Fit Jr. Cable Assembly
The MOLEX 215323-2051 is a Mini-Fit Jr. male-to-pigtail cable assembly designed for power and wire-to-wire applications. It boasts a robust construction with a black nylon resin housing, gold-plated mating contacts, and tin-plated termination contacts. This assembly is ideal for applications requiring secure and reliable power connections, commonly found in automotive, industrial equipment, and consumer electronics.
Authorized Distributors
Source:Mouser Electronics
Part No:215323-2051
Stock:23
Inv Date:05-30-2026
Price: Unit price: $5.67
Buy/RFQ:
Source:RS Americas, Inc
Part No:215323-2051
Stock:0
Inv Date:05-29-2026
Price: Unit price: $4.82
Buy/RFQ:
MOLEX 2153232051 Mini-Fit Jr. Cable Assembly Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Wire Assembly
- configuration: Single Ended
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 150.00mm
- circuits_loaded: 5
- color: Black (Resin)
- gender: Male-Pigtail
- material_metal: Brass
- plating_mating: Gold (Au)
- plating_termination: Tin
- material_resin: Nylon
- net_weight: 20.775/g
- number_of_rows: 1
- pitch_mating_interface: 4.20mm
- plating_min_mating: 0.762µm
- plating_min_termination: 2.032µm
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_maximum_per_contact: 9.0A
- voltage_maximum: 600V
- upc: 193264597789
- material_info: Not Contained Per - D(2020)4578-DC
- halogen_free_status: Not Low-Halogen
- mates_with: Mini-Fit Jr. Receptacle Housing 5557, Mini-Fit TPA2 Cable Assembly 145135
- sales_drawing: 2153232051-000
Buy the 215323-2051 MOLEX Mini-Fit Jr. Cable Assembly | myMectronic
Purchase the genuine MOLEX 215323-2051 Mini-Fit Jr. Cable Assembly securely and efficiently through our online store.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2153232051?
You can click on the BUY or RFQ button to purchase 2153232051 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153232051?
You can download the 2153232051 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153232051?
MOLEX
