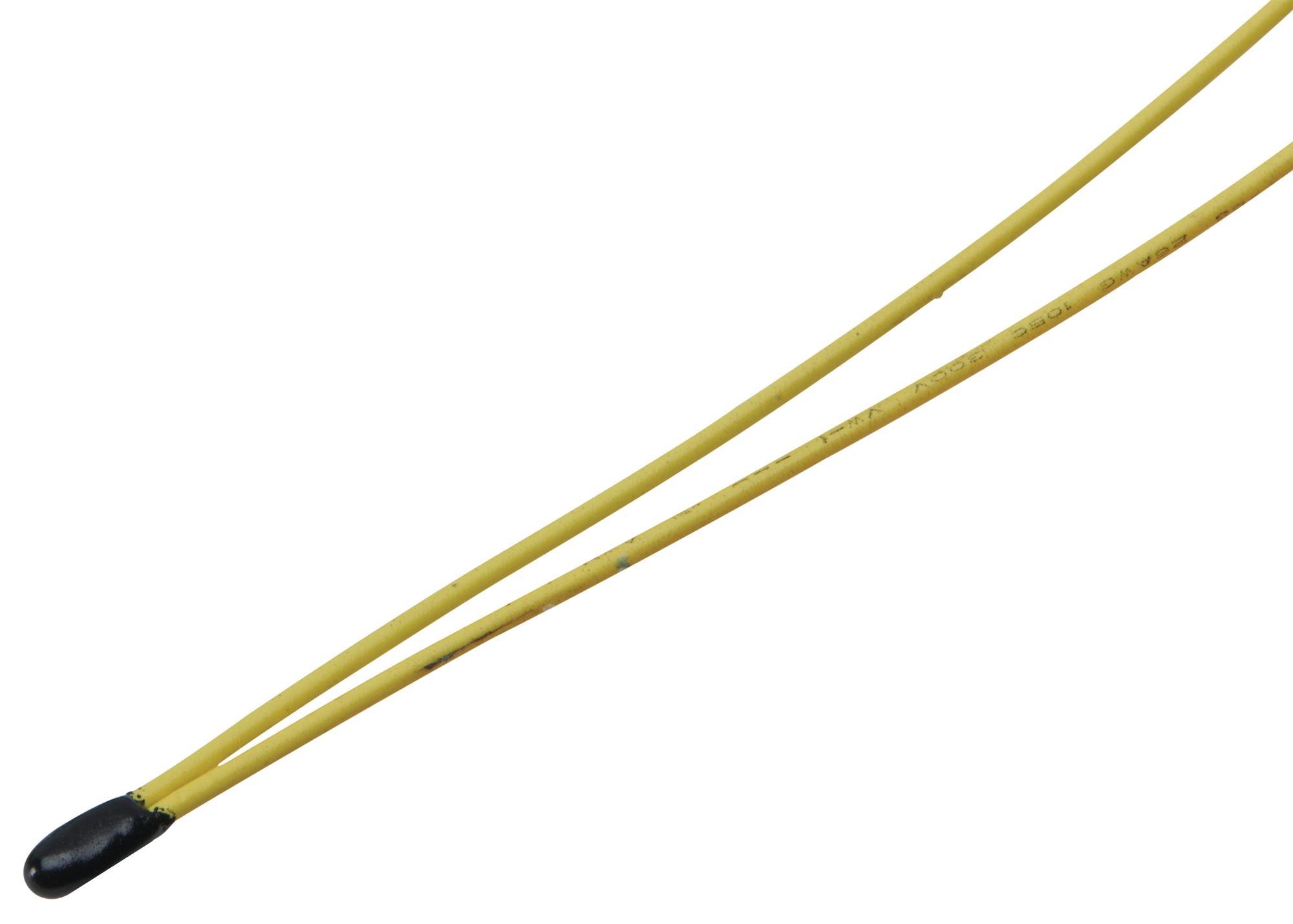

MOLEX 2152723903 NTC Temperature Sensor Cable
The MOLEX 215272-3903 is a temperature sensor cable assembly designed for applications requiring precise temperature monitoring. This cable features an epoxy-coated NTC thermistor, providing reliable and accurate temperature readings. With a length of 25.00mm and a beta value of 3982, it's suitable for various industrial and commercial uses. The 47k ohm resistance at 25°C with 1% tolerance ensures consistent performance. This assembly is RoHS compliant and actively maintained by MOLEX.
MOLEX 2152723903 NTC Temperature Sensor Cable Specifications:
- overview: Temperature Sensor Cable Assemblies
- description: Epoxy Coated NTC Thermistor Cables
- length: 25.00mm
- beta_value: 3982
- resistance_at_25c: 47k ohms
- resistance_tolerance: 1%
- color_resin: Yellow
- cable_length: 25.00mm
- circuits_loaded: 1
- gender: N/A
- lock_to_mating_part: Yes
- net_weight: 0.110/g
- packaging_type: Bag Single Ended
- wire_size_awg: 28
- upc: 193264876457
- series: 215272
- elv_compliance: Not Relevant
- rohs_compliance: Compliant with Exemption 15(a)
- reach_svhc_compliance: lead
- halogen_free_status: Not Reviewed
Buy the 215272-3903 MOLEX NTC Temperature Sensor Cable | myMectronic
Purchase the MOLEX 215272-3903 NTC Temperature Sensor Cable securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2152723903?
You can click on the BUY or RFQ button to purchase 2152723903 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2152723903?
You can download the 2152723903 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2152723903?
MOLEX
