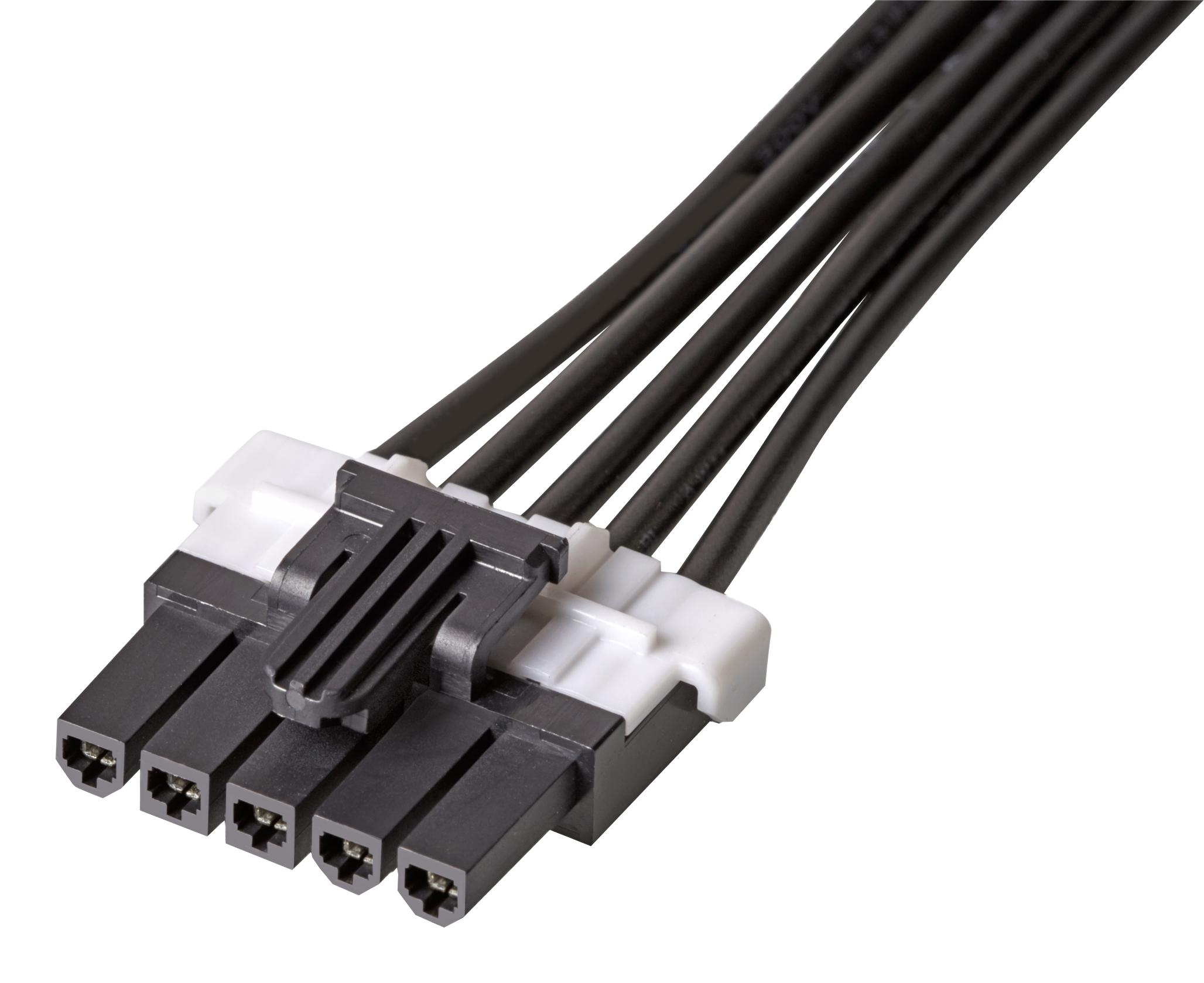

MOLEX 1451350510 Mini-Fit TPA2 Cable Assembly
The MOLEX 145135-0510 is an off-the-shelf discrete cable assembly designed for reliable power transmission and connectivity in various applications. It utilizes Mini-Fit TPA2 connectors at both ends, ensuring a secure and robust connection. The cable is 1.0m in length and features 5 circuits, making it suitable for applications requiring multiple connections. The black nylon resin overmold provides added durability and insulation. This assembly is RoHS compliant and ideal for wire-to-board and wire-to-wire configurations.
MOLEX 1451350510 Mini-Fit TPA2 Cable Assembly Specifications:
- overview: Off-the-Shelf (OTS) Discrete Cable Assemblies
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit TPA2 Both Ends
- cable_length: 1.0m
- circuits_loaded: 5
- color_resin: Black
- material_metal: Phosphor Bronze
- plating_mating: Tin (2.500µm min)
- plating_termination: Tin (2.500µm min)
- material_resin: Nylon
- net_weight: 84.708/g
- packaging_type: Bag
- pitch_mating_interface: 4.20mm
- wire_insulation_diameter: 1.98-3.14mm
- wire_size_awg: 16
- wire_cable_type: UL 1061
- current_max_per_contact: 11.0A
- voltage_max: 600V AC/DC
- material_info: RoHS Compliant, REACH SVHC Not Contained
- halogen_free_status: Not Low-Halogen
- mates_with: Mini-Fit TPA2 Plug Housing 200471, 200488; Mini-Fit Jr. Plug Housing 5559; Mini-Fit Jr. Headers 5566, 5569
- drawing_number: 4000095328-000
