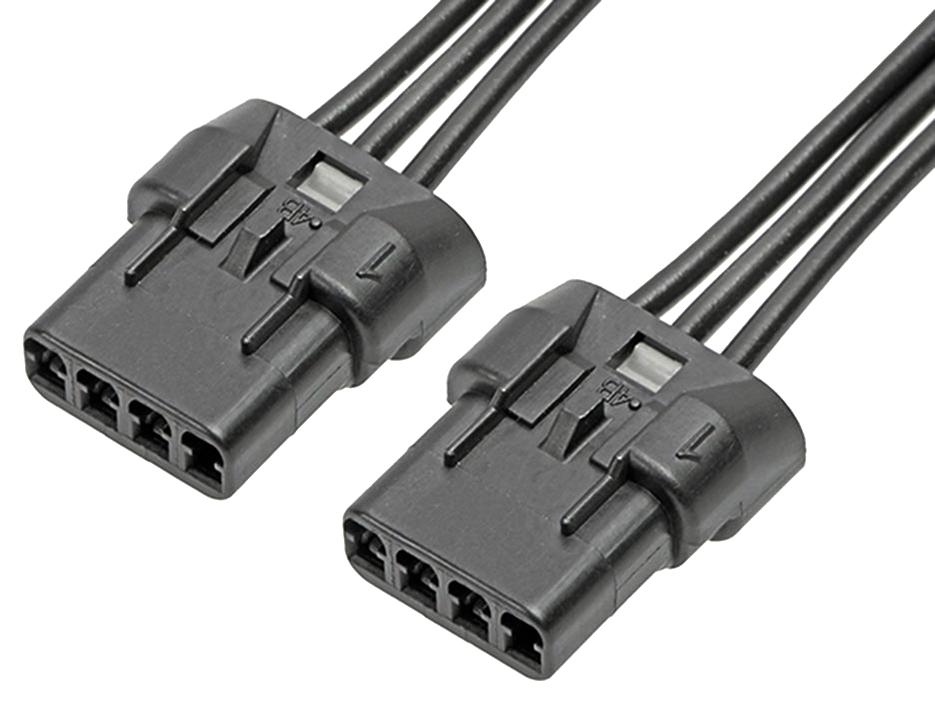

MOLEX 2153101042 Waterproof Connector
The off-the-shelf Mizu-P25 mini cable assemblies feature a 2.50mm pitch, support up to 4A current, and are rated IP67 for water and dust resistance. Designed for automotive, consumer electronics, and industrial automation, these waterproof, compact connectors are available in various cable lengths. They include female-to-female connectors with positive locking mechanisms to ensure proper mating and prevent incorrect connections. Constructed with polyester housings, phosphor bronze contacts, and tin plating, these assemblies deliver reliable, durable, and space-saving connections suitable for harsh environments. UL certified and rated up to 60V.
MOLEX 2153101042 Waterproof Connector Specifications:
- Pitch: 2.50mm
- Cable Length: 300.00mm
- Circuits: 4
- Color: Black
- Gender: Female-Female
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Resin: Polyester
- Voltage Rating: 125V
- Current - Maximum per Contact: 4A
- Waterproof Rating: IP67
- Maximum Temperature: Not specified
- Certifications: UL Listed
- Wire Insulation Diameter: 1.40-1.90mm
- Wire Size AWG: 20, 22
- Lock to Mating Part: Yes
- Mating Type: Connector to Connector
- Application: Automotive, Electronics, Industrial Automation
Buy the Molex 2153101042 – Reliable Waterproof Connectors for Industrial Applications
Purchase the Molex Waterproof Connector today to ensure robust, water-resistant connections for industrial automation, automotive, and consumer electronics projects. Designed with a compact form factor, the 2.50mm pitch, and a secure lock mechanism, this connector provides reliable performance in harsh environments. Rated IP67, it withstands dust and water ingress, maintaining optimal functionality. Made from high-quality materials including polyester housings and phosphor bronze contacts, these assemblies deliver long-lasting durability. Order online now for fast delivery and unmatched quality in your electrical applications.
Get Molex 2153101042 today—built for water resistance, durability, and secure connections in demanding industrial environments.
