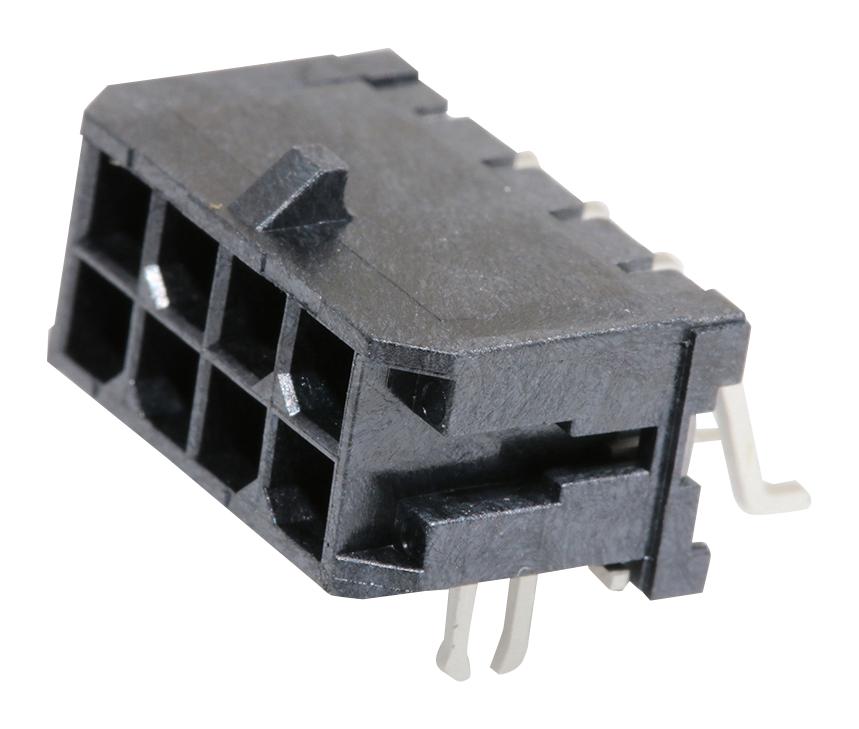

MOLEX 430450808 Power Connector
This high-temperature, right-angle header features a 3.00mm pitch with dual-row, 8 circuits, and a PCB press-fit metal retention clip. Gold-plated over brass, it complies with UL, CSA, and RoHS standards. Designed for power and wire-to-board applications, it withstands operating temperatures from -40°C to +105°C. The connector's flame-retardant thermoplastic housing ensures safety and durability for demanding industrial environments. It is ideal for reliable electrical connections using surface mount technology, supporting up to 8.5A and 600V, with a max of 30 mating cycles.
MOLEX 430450808 Power Connector Specifications:
- Pitch: 3.00mm
- Number of Circuits: 8
- Color: Black
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Flammability: UL 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 10.29mm
- Operating Temperature Range: -40°C to +105°C
- Current per Contact: 8.5A
- Voltage Rating: 600V
- Durability (max mating cycles): 30
- Surface Mount Compatible: Yes
- Maximum Solder Process Temperature: 260°C
- Process Duration at Max Temp: 3 seconds
- Packaging: Embossed Tape on Reel
- RoHS Compliant: Yes
- Halogen-Free: Yes
Buy the Molex 0430450808 – Reliable Power and Wire-to-Board Connector for Industrial Applications
Secure your industrial connections with this high-temperature power connector designed for reliable performance under demanding conditions. Featuring a 3.00mm pitch, 8 circuits, and gold-plated contacts, it ensures excellent electrical conductivity and corrosion resistance. Its press-fit PCB mounting provides easy assembly and secure attachment, making it perfect for power applications and wire-to-board configurations. Compliant with UL, CSA, and RoHS standards, this connector supports up to 8.5A and 600V, with durability for up to 30 mating cycles, ensuring long-lasting performance.
Buy Molex 0430450808 now and experience unmatched reliability and performance with high-temperature durability and secure PCB connection capabilities.
