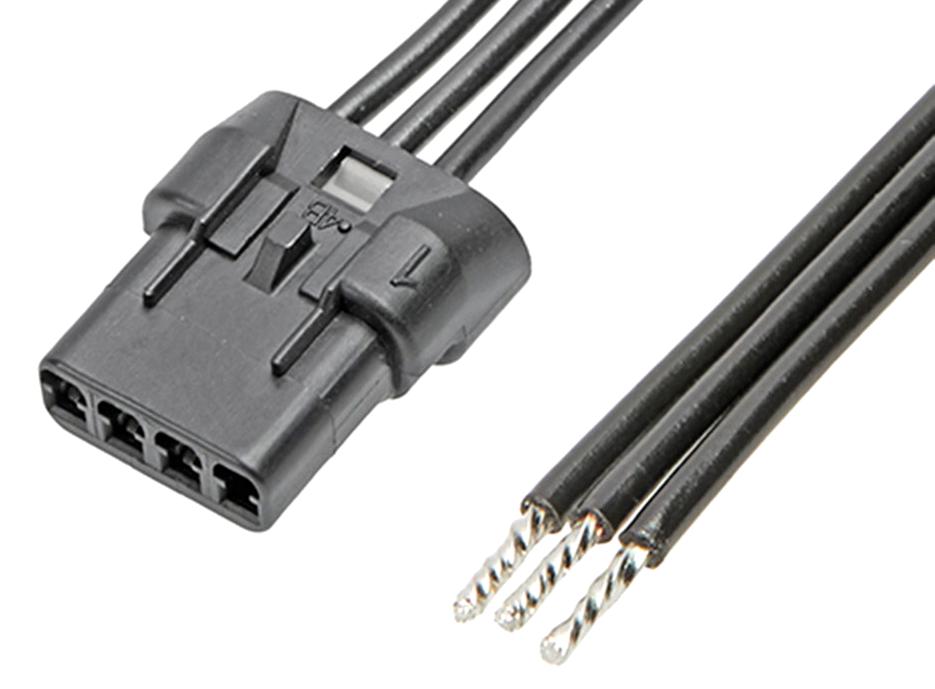

MOLEX 2153111032 Waterproof Connector
The 215311 series Mizu-P25 female-to-Pigtail Off-the-Shelf cable assembly features a 2.50mm pitch, IP67 waterproof rating, and a maximum current of 4A. Designed for secure connections, it includes a positive locking mechanism and polarization to prevent mis-mating, making it ideal for automotive, industrial, and consumer applications. Constructed with a durable polyester housing, phosphor bronze contacts with tin plating, and rated for up to 60V, this compact assembly is available in various cable lengths for versatile use in space-constrained environments.
MOLEX 2153111032 Waterproof Connector Specifications:
- Pitch: 2.50mm
- Waterproof rating: IP67
- Current: 4A maximum per contact
- Voltage: 60V maximum
- Material - Contact: Phosphor bronze with tin plating
- Housing Material: Polyester
- Cable Length: 300.00mm
- Number of Circuits: 3
- Color: Black
- Connector Gender: Female-Pigtail
- Locking Mechanism: Yes
- Mating Interface: 2.50mm pitch
- Wire Insulation Diameter: 1.40-1.90mm
- Wire Size: 20, 22 AWG
- Termination Style: Crimp or Compression
Buy the Molex Series Mizu-P25 Waterproof Connector: 2153111032
Experience reliable sealing and secure connection with the Molex Mizu-P25 waterproof connector assembly. Designed with a robust IP67 rating, it resists moisture and dust, making it perfect for harsh environments. Its locking mechanism and polarization prevent mis-mating, ensuring dependable performance. Suitable for automotive, industrial, and consumer applications, it features a compact design with a 2.50mm pitch, 3 circuits, and various cable lengths. Built with durable materials and rated for 60V, it guarantees long-lasting, safe operation in space-constrained setups.
Buy Molex 2153111032 waterproof connector now and ensure secure, waterproof connections for automotive, industrial, or consumer electronics.
