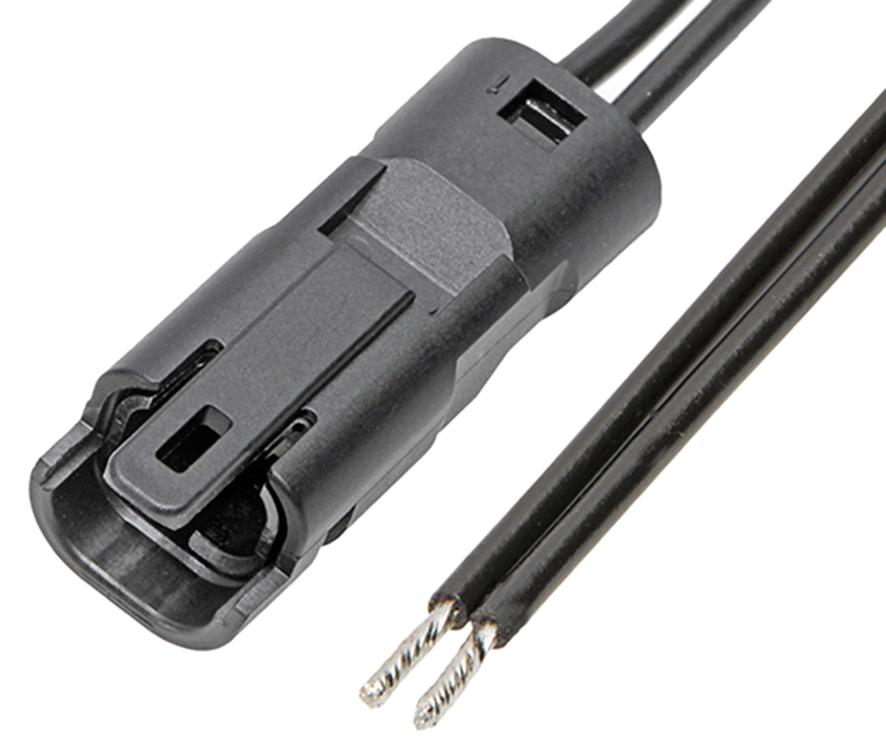

MOLEX 2153131022 Waterproof Connector
The Mizu-P25 mini waterproof cable assemblies feature a 2.50mm pitch and IP67 rating, ensuring dust and water resistance. Capable of handling up to 4A current and a maximum voltage of 60V, these assemblies are ideal for automotive, consumer, and industrial automation applications. They include a positive lock and seal stopper for secure mating and reliable sealing. Made with polyester housings and phosphor bronze contacts with tin plating, they offer high pressure and vibration resistance. Certified by UL, these durable, sealed connectors facilitate reliable electrical connections in harsh environments.
MOLEX 2153131022 Waterproof Connector Specifications:
- Pitch: 2.50mm
- Current - Maximum per Contact: 4A
- Voltage - Maximum: 60V
- Waterproof Rating: IP67
- Cable Length: 300.00mm
- Number of Circuits: 2
- Housing Material: Polyester
- Contact Material: Phosphor Bronze
- Contact Plating: Tin
- Termination Interface: Crimp or Compression
- Wire Insulation Diameter: 1.40-1.90mm
- Wire Size AWG: 20, 22
- Color - Resin: Black
- Gender: Male-Pigtail
- Assembly Configuration: Connector to Connector
- Status: Active
Buy the Molex Series Mizu-P25 Waterproof Connectors: 2153131022
Order the Molex waterproof connector assembly today and enjoy seamless sealing, high pressure resistance, and secure locking features. Designed for harsh environments, this 2.50mm pitch waterproof connector ensures reliable electrical connections in automotive, industrial, and consumer applications. With UL certification, IP67 rating, and robust materials like polyester housings and tin-plated phosphor bronze contacts, this cable assembly provides excellent durability, vibration resistance, and safety. Perfect for demanding industrial automation, outdoor, and machinery installations, ensuring long-lasting performance and peace of mind.
Buy Molex 2153131022 waterproof cable assembly now and experience unmatched reliability and durable sealing for harsh environments.
Frequently Asked Questions
Where can I buy MOLEX 2153131022?
You can click on the BUY or RFQ button to purchase 2153131022 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153131022?
You can download the 2153131022 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153131022?
MOLEX
