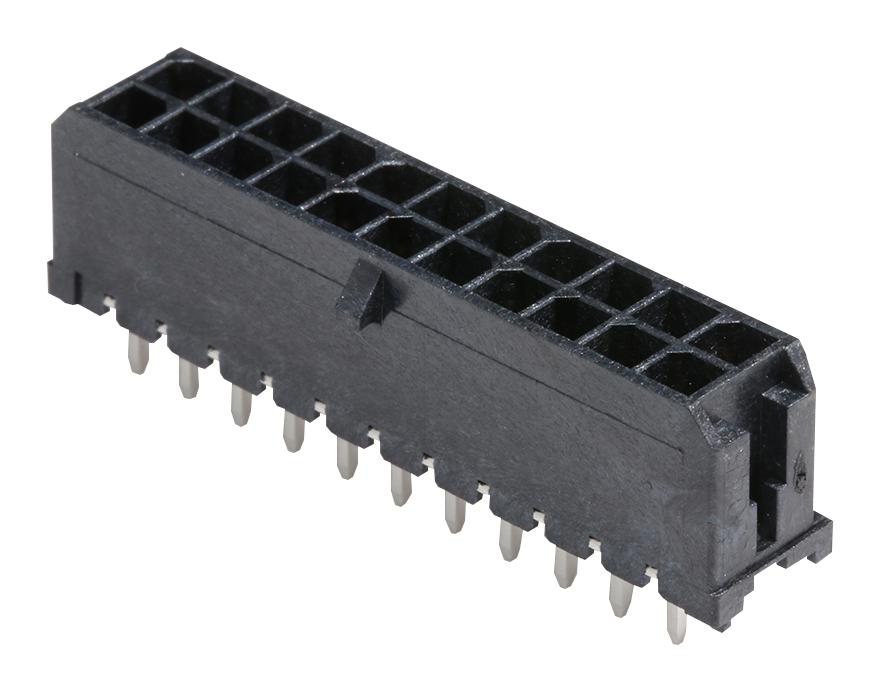

MOLEX 430452227 Power Connector
The Micro-Fit 3.0 Vertical Header is a versatile 3.00mm pitch connector with dual rows and 22 circuits, designed for power and wire-to-board applications in industrial, automotive, and consumer electronics. Made from high-temperature thermoplastic and tin-plated metal, it features a polarized design, PCB retention, and can withstand operational temperatures from -40°C to +105°C. It supports up to 8.5A current and 600V voltage, ensuring reliable electrical performance. Its robust design provides durability over multiple mating cycles, making it suitable for demanding environments and power distribution systems.
MOLEX 430452227 Power Connector Specifications:
- Material: High temperature thermoplastic
- Color: Black
- Contact Material: Tin-plated metal
- Rated Current: 8.5A
- Voltage Rating: 600V
- Temperature Range: -40°C to +105°C
- Pitch: 3.00mm
- Number of Circuits: 22
- Number of Rows: 2
- Lock to Mating Part: None
- Mated Height: 1.60mm
- PCB Tail Length: 3.18mm
- PCB Thickness - Recommended: 1.60mm
- Durability (mating cycles max): 260
- Flammability: Glow-wire capable, UL 94V-0
- Shrouded: No
- Surface Mount Compatible: Yes
- Orientation: Vertical
- Packaging: Tray
- Termination Interface Style: Through Hole
Buy the Molex 0430452227 – Reliable Power Connector for Industrial Applications
Secure your power and signal connections with the high-quality Molex power connector. Designed for durability, high-temperature operation, and reliable performance in industrial, automotive, and consumer electronics applications. This 22-circuit, 3.00mm pitch vertical header features easy PCB mounting, polarization, and multiple mating cycles support. Its robust construction ensures safe and consistent electrical connections, making it ideal for demanding environments. Purchase online today to ensure your project benefits from proven reliability and high-performance power distribution.
Buy Molex 0430452227 now and experience unmatched reliability and performance in power and wire-to-board connections for industrial and electronic devices.
Frequently Asked Questions
Where can I buy MOLEX 430452227?
You can click on the BUY or RFQ button to purchase 430452227 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 430452227?
You can download the 430452227 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 430452227?
MOLEX
