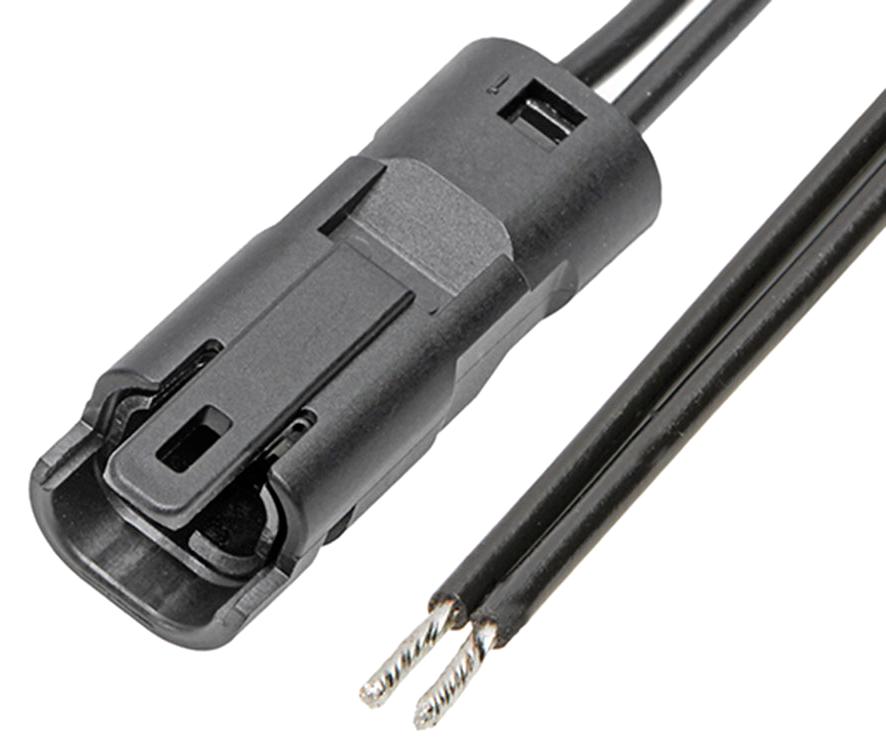

MOLEX 2153131023 Waterproof Connector
The Mizu-P25 waterproof cable assembly features a 2.50mm pitch, supporting up to 4A current and rated IP67 for dust and water resistance. It is suitable for automotive, industrial, and consumer applications, offering a reliable connection. The assembly includes male-to-pigtail configuration with a positive lock and integrated seal stopper for enhanced sealing. Constructed with polyester housing and phosphor bronze contacts tin-plated for durability, it ensures high-pressure tolerance and minimal deflection, especially in high-vibration environments. UL certified, it delivers dependable, corrosion-resistant electrical performance.
MOLEX 2153131023 Waterproof Connector Specifications:
- Series: 215313
- Product Family: Mizu-P25
- Application: Automotive, industrial automation, consumer electronics
- Assembly Configuration: Connector to connector, male-to-pigtail
- Cable Length: 600.00mm
- Circuits: 2
- Color - Resin: Black
- Gender: Male
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Resin: Polyester
- Net Weight: 9.000 g
- Number of Rows: 1
- Pitch - Mating Interface: 2.50mm
- Termination Interface Style: Crimp or Compression
- Wire Insulation Diameter: 1.40-1.90mm
- Wire Size AWG: 20, 22
- Wire/Cable Type: Discrete Wire
- Current - Maximum per Contact: 4.0A
- Voltage - Maximum: 125V
- Ingress Protection: IP67
- Housing Material: Polyester
- Contact Material: Phosphor Bronze
- Contact Plating: Tin
- Certifications: UL (file no E29179)
- Sealing: Integral seal stopper
- Design Features: Spring-beam terminal, positive lock, high-pressure tolerance
- Environmental Resistance: Dust and water resistant, IP67
Buy the Molex Series Mizu-P25 Waterproof Connectors: 2153131023
Purchase the Molex waterproof connector module online today and benefit from durable, high-performance electrical connections. Featuring a 2.50mm pitch, IP67 rating, and 4A current capacity, it’s ideal for automotive, industrial, and consumer electronics. The assembly’s male-to-pigtail configuration provides secure locking with an integral seal stopper for optimal sealing. Constructed with polyester housing and tin-plated phosphor bronze contacts, this UL-certified connector ensures longevity and corrosion resistance. Available in various cable lengths, it’s perfect for demanding environments requiring reliable and sealed connections.
Get Molex 2153131023 waterproof cable assembly today—designed for high vibration, corrosion resistance, and reliable industrial performance.
Frequently Asked Questions
Where can I buy MOLEX 2153131023?
You can click on the BUY or RFQ button to purchase 2153131023 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153131023?
You can download the 2153131023 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153131023?
MOLEX
