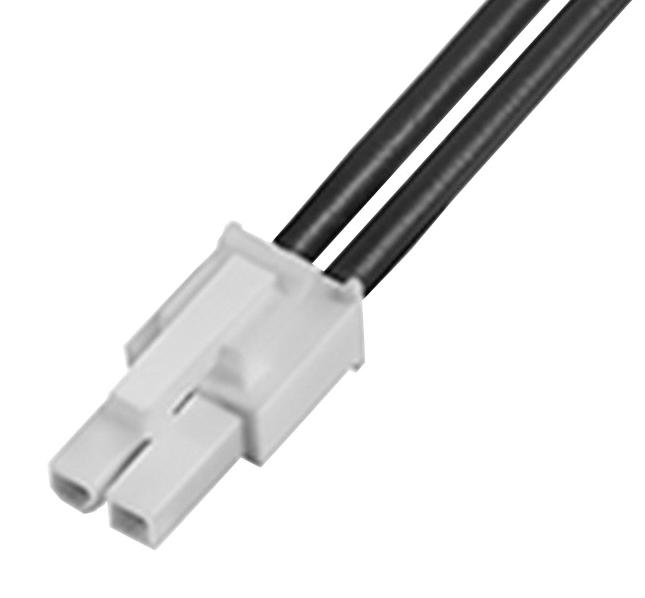

MOLEX 2153232022 Mini-Fit Jr. Cable Assembly
The MOLEX 215323-2022 is a Mini-Fit Jr. male-to-pigtail cable assembly designed for power wire-to-wire applications. It features a single row configuration, a black nylon resin housing, and gold-plated mating contacts for reliable electrical connection. This assembly is ideal for various industrial applications requiring secure and efficient power transmission, offering a convenient off-the-shelf solution for connecting power sources to equipment.
Authorized Distributors
Source:Mouser Electronics
Part No:215323-2022
Stock:0
Inv Date:05-30-2026
Price: Unit price: $2.12
Buy/RFQ:
Source:RS Americas, Inc
Part No:215323-2022
Stock:0
Inv Date:05-29-2026
Price: Unit price: $2.16
Buy/RFQ:
MOLEX 2153232022 Mini-Fit Jr. Cable Assembly Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Wire Assembly
- configuration: Single Ended
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 300.00mm
- circuits_loaded: 2
- color_resin: Black
- material_metal: Brass
- plating_mating: Gold (Au)
- plating_termination: Tin
- material_resin: Nylon
- net_weight: 15.013/g
- number_of_rows: 1
- pitch_mating_interface: 4.20mm
- plating_min_mating: 0.762µm
- plating_min_termination: 2.032µm
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- upc: 193264597703
Buy the 215323-2022 MOLEX Mini-Fit Jr. Cable Assembly | myMectronic
Purchase the MOLEX 215323-2022 Mini-Fit Jr. Cable Assembly securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2153232022?
You can click on the BUY or RFQ button to purchase 2153232022 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153232022?
You can download the 2153232022 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153232022?
MOLEX
