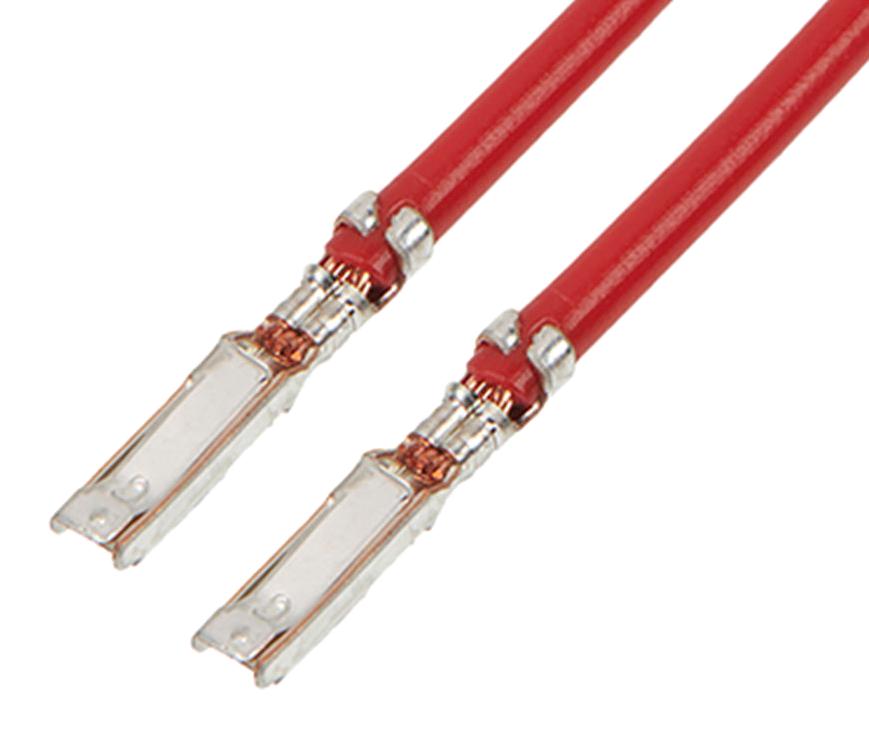

MOLEX 2178401121 Mizu-P25 Pre-Crimped Lead
The MOLEX 217840-1121 is a pre-crimped lead cable assembly specifically engineered for Mizu-P25 connector systems. This assembly provides a ready-to-use solution for wire-to-wire connections, eliminating the need for on-site crimping. With a tin plating for enhanced conductivity and corrosion resistance, a 75mm length, and a 20 AWG wire gauge, it's ideal for signal transmission in various industrial and commercial applications. Its pre-crimped design ensures consistent quality and simplifies installation.
MOLEX 2178401121 Mizu-P25 Pre-Crimped Lead Specifications:
- Product Family: Cable Assemblies
- Series: 217840
- Application: Signal, Wire-to-Wire Assembly
- Configuration: Pre-crimped Lead Only
- Connector to Connector: Mizu-P25
- Cable Length: 75.00mm
- Circuits Loaded: 1
- Color - Resin: Black
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Net Weight: 0.720/g
- Single Ended: No
- Termination Interface Style: Crimp or Compression
- Wire Insulation Diameter: 1.40-1.90mm
- Wire Size AWG: 20
- Wire/Cable Type: UL 10002
- Voltage - Maximum: 125V
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Not Low-Halogen
