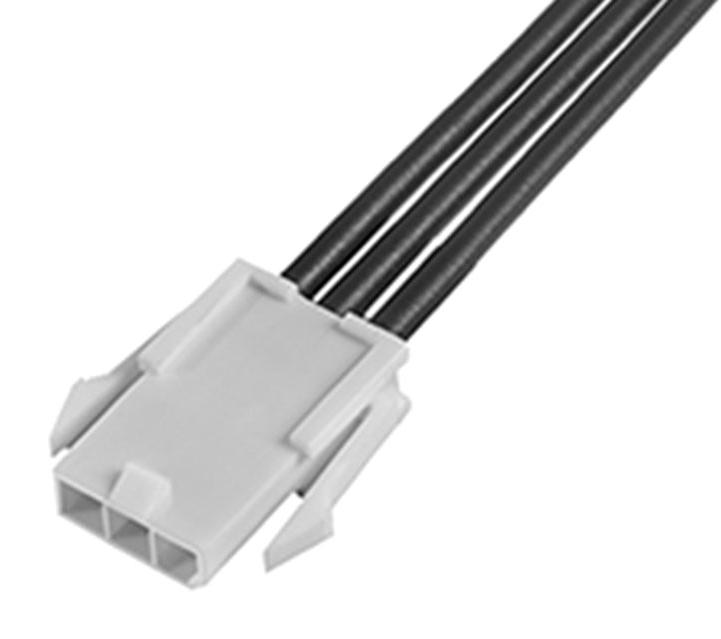

MOLEX 2153202033 Power Cable Assembly
This Mini-Fit Jr. female-to-female cable assembly features a 600mm length with gold-plated contacts, suitable for power applications. It supports three circuits and is designed for connector-to-connector assembly, ensuring a reliable connection. Made from durable materials including brass with gold plating, nylon resin, and tin termination, it offers high current capacity of 9A and voltage of 600V. The assembly is RoHS compliant, halogen-free, and ideal for wire-to-wire power connections in electronic systems, with easy crimp or compression termination. Compatible with Mini-Fit Jr. headers and plugs.
MOLEX 2153202033 Power Cable Assembly Specifications:
- Cable Length: 600.00mm
- Circuits: 3
- Color - Resin: Black
- Gender: Female-Female
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Wire Insulation Diameter: 4.20mm
- Wire Size AWG: 16
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Termination Interface: Crimp or Compression
- Dimensions: 600mm length, 1.80-3.10mm wire gauge compatible, pitch 4.20mm
- RoHS: Compliant
- Halogen-Free: No
- Certifications: UL 1015
Buy the Molex Series Mini-Fit JR Power Cable: 2153202033
Purchase the Molex Series Mini-Fit JR power cable assembly 2153202033 online today for high-quality power connections. With a length of 600mm and three circuits, it features gold-plated contacts for durable, corrosion-resistant performance. Made from robust materials like brass and nylon, it supports up to 9A and 600V for demanding applications. Its crimp or compression termination makes installation easy, and it is RoHS compliant, environmentally friendly, and compatible with Mini-Fit Jr. headers and plugs. Enhance your electronic projects with reliable power delivery.
Order your Molex Series Mini-Fit JR power cable assembly 2153202033 today and ensure reliable, high-current power connections for your electronic projects.
