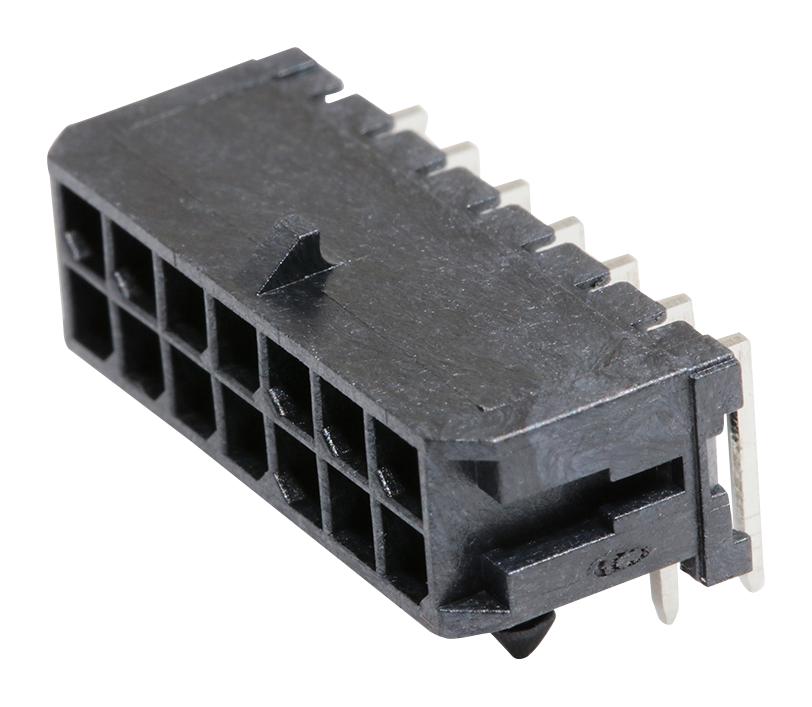

MOLEX 430451401 Micro-Fit Connector
The Micro-Fit 3.0 right-angle header with a 3.00mm pitch offers a compact, high-current connection solution suitable for power and wire-to-board applications. Featuring 14 circuits, a snap-in plastic PCB lock, gold plating for enhanced conductivity, and high-temperature thermoplastic construction, it ensures durability and reliable performance in demanding environments. The connector complies with safety standards, is glow-wire capable, and supports up to 8.5A current at 600V. It is ideal for applications requiring secure, robust connections with a long cycle life and ease of installation.
MOLEX 430451401 Micro-Fit Connector Specifications:
- Circuits: 14 (loaded), up to 14 (maximum)
- Pitch: 3.00mm
- Color - Resin: Black
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High temperature thermoplastic
- Mated Height: 10.29mm
- Durability (mating cycles max): 10.29mm
- Maximum Current per Contact: 8.5A
- Maximum Voltage: 600V
- Operating Temperature Range: -40°C to +105°C
- Engagement Style: Fully shrouded, right-angle, through hole
- Packaging: Tray
- PCB Thickness - Recommended: 1.60mm
- Surface Mount Compatibility: No
- PCB Locator: Yes
- PCB Retention: Yes
- Glow-Wire Capable: Yes
- Flammability: UL 94V-0
Buy the Buy Molex Micro-Fit 3.0 Part Number 0430451401 Online
Purchase the Molex Micro-Fit Connector today for reliable power and signal connections in electronic devices. Designed with 14 circuits, gold-plated contacts, and a snap-in lock for secure fitting, this high-temperature thermoplastic connector ensures durability and safety. It supports up to 8.5A current at 600V, making it suitable for demanding environments. Easy to install, with a compact right-angle design, it offers long-lasting performance with numerous mating cycles. Ideal for power supplies, industrial equipment, and high-reliability applications, buy online now for quick delivery and quality assurance.
Get Molex 0430451401 today—built for high current, secure connections in power and wire-to-board applications.
Frequently Asked Questions
Where can I buy MOLEX 430451401?
You can click on the BUY or RFQ button to purchase 430451401 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 430451401?
You can download the 430451401 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 430451401?
MOLEX
