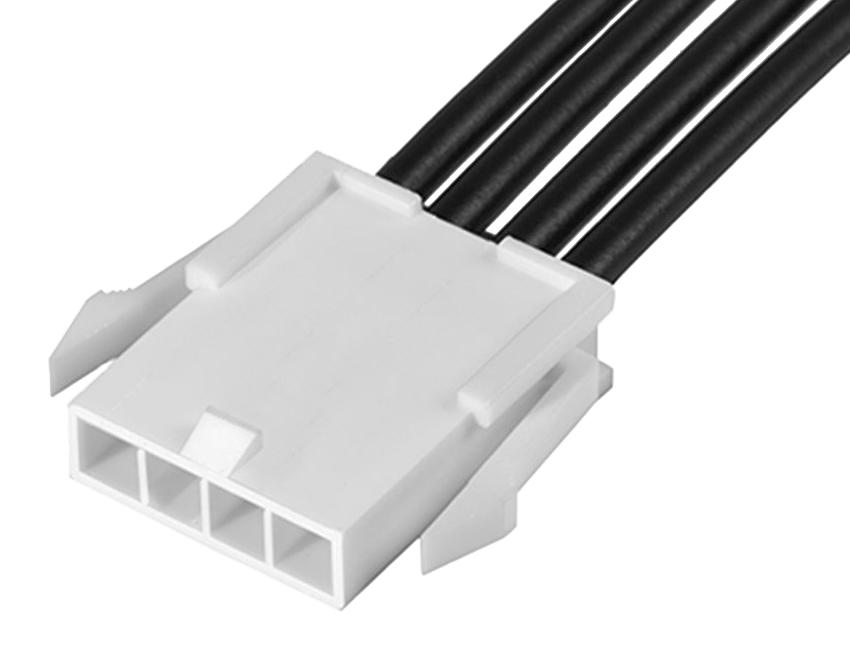

MOLEX 2153202041 Power Cable Assembly
The Mini-Fit Jr. Female-to-Female Cable Assembly is a 150mm long, off-the-shelf power connector designed for reliable electrical connections in various applications. It features a single row, 4-circuit configuration with gold-plated contacts for enhanced conductivity and corrosion resistance. Made with durable nylon housing and brass contacts, these assemblies support a maximum current of 9A and a maximum voltage of 600V. Compatible with Mini-Fit Jr. headers and plugs, this assembly is RoHS compliant and suitable for power wire-to-wire connections.
MOLEX 2153202041 Power Cable Assembly Specifications:
- Cable Length: 150.00mm
- Number of Circuits: 4
- Gender: Female-Female
- Color - Resin: Black
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Wire Insulation Diameter: 2.20mm
- Wire Size AWG: 16
- Termination Interface Style: Crimp or Compression
- Package Type: Bag
- Physical Length: 150.00mm
- Reference Drawing Number: 215321
- RoHS Compliance: Yes
- UL Certification: UL 1015
- Application: Power wire-to-wire, connector to connector
- Lock to Mating Part: Yes
Buy the Molex Series Mini-Fit Jr. Power Connector: 2153202041
Enhance your power connectivity with the Molex Mini-Fit Jr. female-to-female cable assembly. This 150mm durable nylon housing assembly features four circuits with gold-plated contacts, supporting up to 9A and 600V, ideal for secure wire-to-wire power connections. Its crimp or compression termination style ensures a solid and reliable fit. RoHS compliant, this assembly provides high-quality electrical performance while supporting easy installation in various industrial and electronic applications. Purchase online today for dependable power solutions.
Order your Molex Series Mini-Fit Jr. 2153202041 today and ensure reliable power connections with this durable, gold-plated female-to-female cable assembly.
Frequently Asked Questions
Where can I buy MOLEX 2153202041?
You can click on the BUY or RFQ button to purchase 2153202041 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153202041?
You can download the 2153202041 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153202041?
MOLEX
