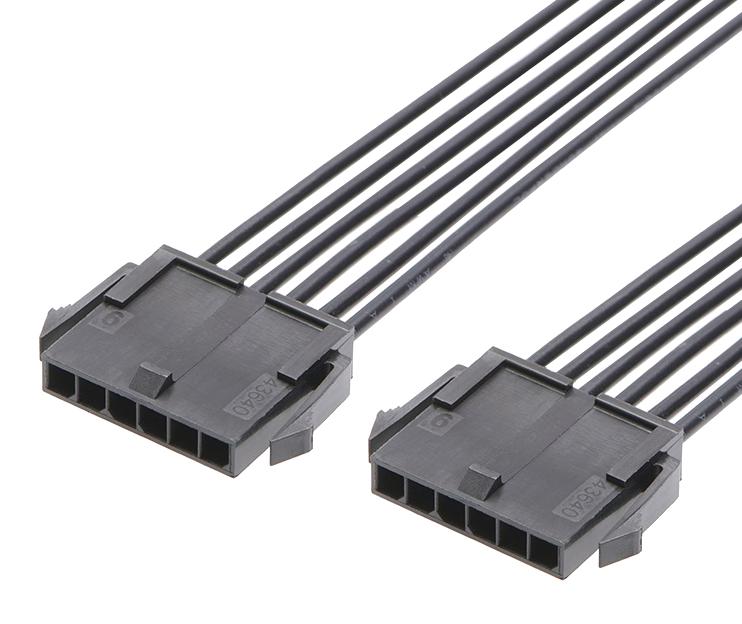

MOLEX 2147502043 Micro-Fit 3.0 Cable Assembly
The MOLEX 214750-2043 is a Micro-Fit 3.0 Female-to-Female cable assembly designed for power, wire-to-board, and wire-to-wire applications. This assembly provides a reliable connection with gold and tin plating for optimal conductivity and durability. It is suitable for various industrial applications requiring robust and secure power transmission.
Authorized Distributors
Source:Mouser Electronics
Part No:214750-2043
Stock:490
Inv Date:05-30-2026
Price: Unit price: $6.07
Buy/RFQ:
Source:RS Americas, Inc
Part No:214750-2043
Stock:0
Inv Date:05-29-2026
Price: Unit price: $5.16
Buy/RFQ:
MOLEX 2147502043 Micro-Fit 3.0 Cable Assembly Specifications:
- overview: Micro-Fit Connector System
- description: Micro-Fit 3.0 Female-to-Micro-Fit 3.0 Female Off-the-Shelf (OTS) Cable Assembly
- cable_length: 600.00mm
- circuits_loaded: 4
- color_resin: Black
- material_metal: Phosphor Bronze
- plating_mating: Gold (Au)
- plating_termination: Tin
- material_resin: Nylon
- net_weight: 28.363/g
- number_of_rows: 1
- pitch_mating_interface: 3.00mm
- plating_min_mating: 0.762µm
- plating_min_termination: 2.540µm
- wire_insulation_diameter_max: 1.85mm
- wire_size_awg: 18
- wire_cable_type: Discrete Wire, UL 10002
- current_maximum_per_contact: 8.5A
- upc: 193264585137
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- material_info: Drawing Numbers: 2147502041-000
