MOLEX 2181120703 Signal Cable Assembly

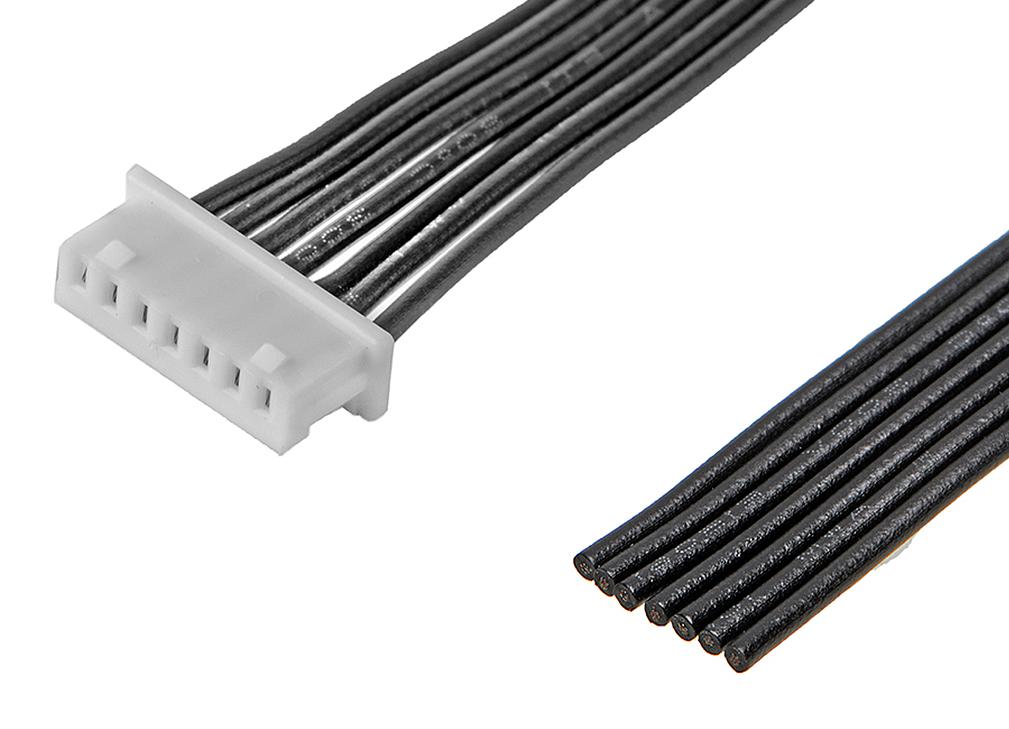

The PicoBlade female-to-pigtail off-the-shelf cable assembly from the 218112 series features a single-row, natural-colored connector with a length of 300 mm and 7 circuits. Designed for signal, wire-to-board, and wire-to-wire applications, it mates with PicoBlade headers and plug housings, including models 53261, 53047, 53398, and 53048. Made from phosphor bronze with tin plating, it has a polyester insulator and a 1.25 mm pitch. Suitable for crimp or compression termination on 28 AWG wire, it provides reliable, efficient connections for prototyping and production.
MOLEX 2181120703 Signal Cable Assembly Specifications:
- Cable Length: 300.00mm
- Circuits: 7
- Color: Natural
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Pitch - Mating Interface: 1.25mm
- Wire Insulation Diameter: 0.50-1.00mm
- Wire Size AWG: 28
- Wire/Cable Type: Discrete Wire Assembly
- Termination Style: Crimp or Compression
- Net Weight: 2.985/g
Buy the Molex 2181120703 – Reliable Signal Cable Assemblies for Industrial Applications
Order the Molex 2181120703 PicoBlade female-to-pigtail cable assembly online today. This versatile, reliable connector is perfect for signal, wire-to-wire, and wire-to-board applications. It features a single-row, 7-circuit design with 300 mm length, made from high-quality phosphor bronze with tin plating, ensuring excellent electrical contact and durability. Suitable for crimp or compression termination on 28 AWG wire, this assembly offers an efficient solution for prototyping, testing, and manufacturing needs. Buy now for seamless integration into your projects.
Get Molex 2181120703 today—built for precision and long-lasting durability, ideal for prototype and production signal wiring solutions.
