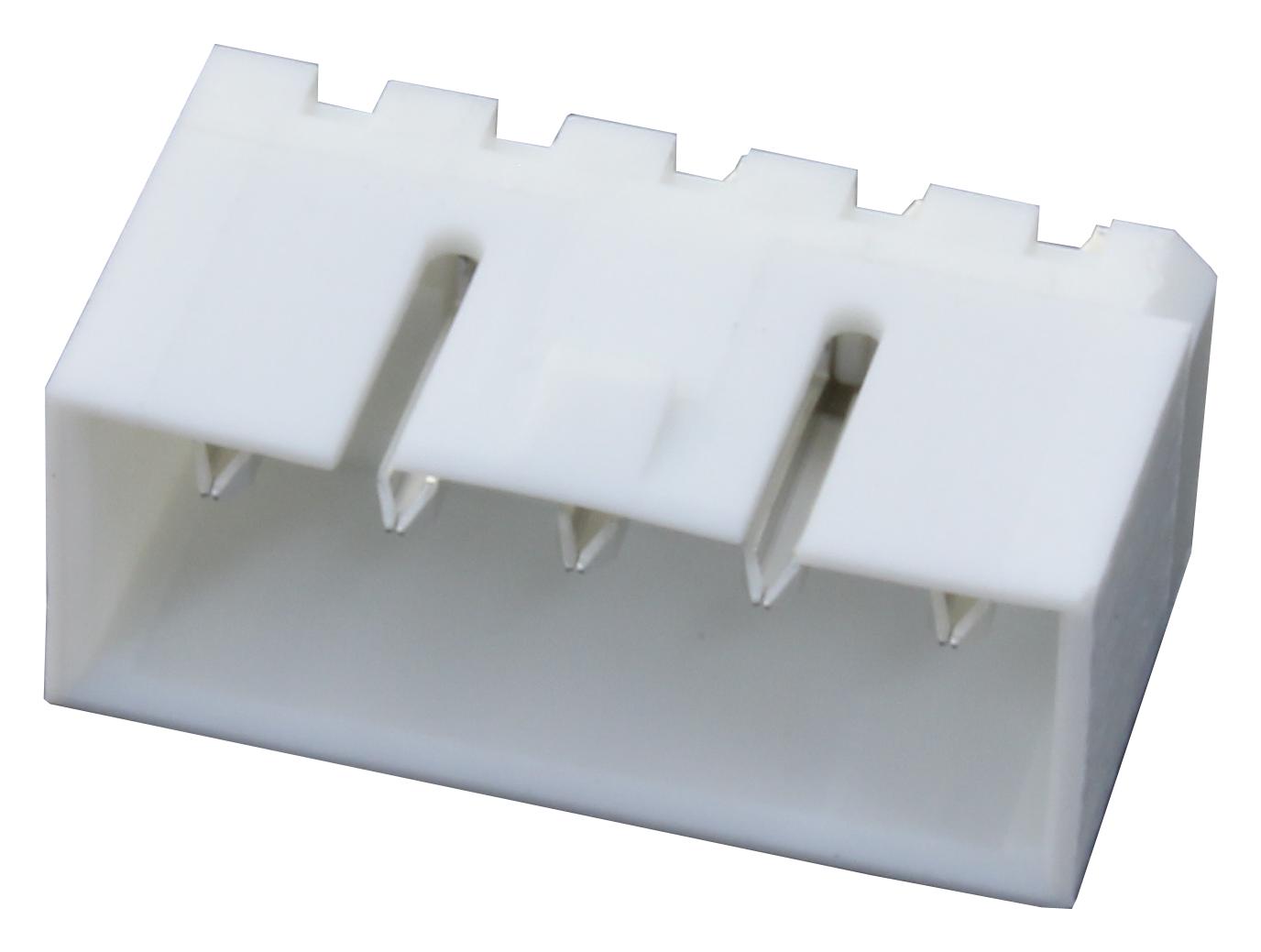

MOLEX 532580429 Power Connector
The Mighty-SPOX Header is a 3.50mm pitch, vertical power and wire-to-board connector made of brass with tin plating. Designed for robust electrical connections, it supports up to 4 circuits with durability for mating cycles. Suitable for industrial and electronics applications, it features UL certification, RoHS compliance, and operational temperature range from -40°C to +105°C. The connector is stackable, shrouded, and includes PCB retention and locator features for secure mounting. It is ideal for power distribution and signal connections in complex electronic systems.
MOLEX 532580429 Power Connector Specifications:
- Pitch - Mating Interface: 3.50mm
- Circuits (Loaded): 4
- Circuits (Maximum): 4
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Color - Resin: Natural
- Durability (mating cycles max): 30
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 5.5A
- Voltage - Maximum: 250V
- Net Weight: 1039.100/mg
- Orientation: Vertical
- PCB Tail Length: 1.60mm
- Packaging Type: Tray
- Shrouded: Yes
- Stackable: Yes
- UL Certification: Yes
- RoHS Compliant: Yes
- Halogen-Free: No
Buy the Molex Series Mighty-SPOX Power Connector: 532580429
Secure your electronic and power connection needs with the Molex Mighty-SPOX power connector. Featuring a 3.50mm pitch, four circuits, and quality brass construction with tin plating, it ensures durable and reliable performance in various applications. Designed for easy installation with shrouded, stackable features, and UL certification, it is perfect for industrial, automation, and electronics systems. Order online today to benefit from fast delivery and trusted quality for all your wiring and power distribution projects.
Order your Molex Series Mighty-SPOX power connector today and ensure reliable electrical connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 532580429?
You can click on the BUY or RFQ button to purchase 532580429 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 532580429?
You can download the 532580429 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 532580429?
MOLEX
