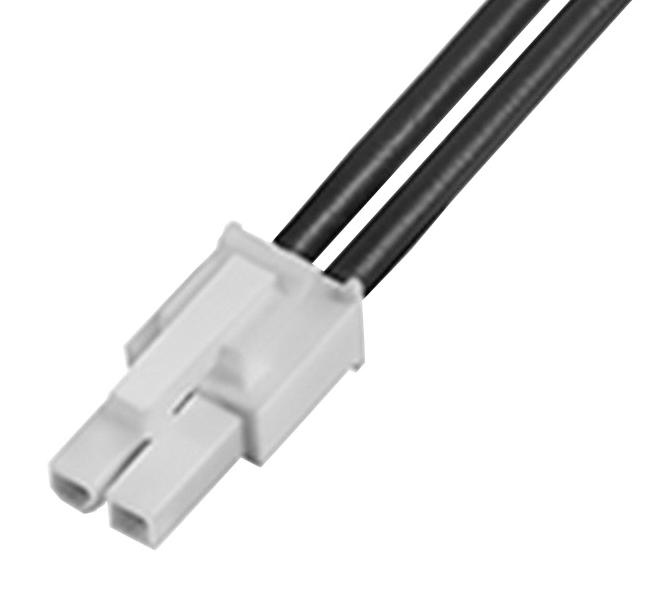

MOLEX 2153222022 Mini-Fit Jr. Cable Assembly
The MOLEX 215322-2022 is a Mini-Fit Jr. male-to-male cable assembly ideal for wire-to-wire power applications. This assembly offers a robust connection with gold plating on the mating interface and tin plating on the termination interface. It is designed for use with Mini-Fit Jr. receptacle housings and provides a reliable solution for various industrial and commercial applications requiring power transmission.
Authorized Distributors
Source:Mouser Electronics
Part No:215322-2022
Stock:0
Inv Date:05-30-2026
Price: Unit price: $2.8
Buy/RFQ:
Source:RS Americas, Inc
Part No:215322-2022
Stock:0
Inv Date:05-29-2026
Price: Unit price: $2.86
Buy/RFQ:
MOLEX 2153222022 Mini-Fit Jr. Cable Assembly Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit Jr. Both Ends
- cable_length: 300.00mm
- circuits_loaded: 2
- color_resin: Black
- material_metal: Brass
- plating_mating: Gold (Au)
- plating_termination: Tin
- material_resin: Nylon
- net_weight: 16.540/g
- number_of_rows: 1
- pitch_mating_interface: 4.20mm
- plating_min_mating: 0.762µm
- plating_min_termination: 2.032µm
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_maximum_per_contact: 9.0A
- voltage_maximum: 600V
- upc: 193264597406
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- mates_with: Mini-Fit Jr. Receptacle Housing 5557, Mini-Fit TPA2 Cable Assembly 145135
