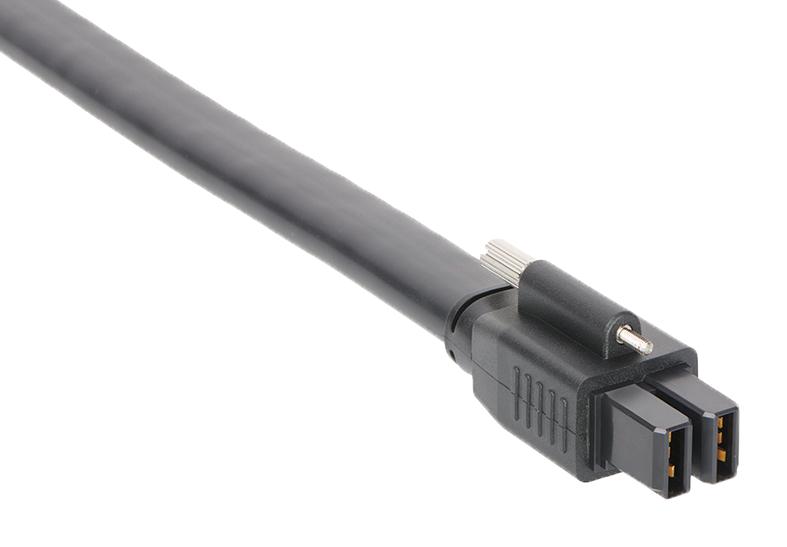

MOLEX 2167592025 High Power Connector
The 216759 series EXTreme Guardian-to-pigtail off-the-shelf overmoulded cable assembly is designed for high-reliability applications across aerospace, defense, data communication, electric vehicles, medical devices, and solar systems. It features an 11.00mm pitch connector with a locking screw for secure mating, capable of handling 60A current at 600V maximum. Constructed with a PBT housing, copper alloy contacts, and gold plating, it supports -40°C to +105°C temperatures. The assembly ensures durability with at least 25 mating cycles, and features a polarized interface to prevent incorrect connections, making it ideal for rugged industrial and safety-critical environments.
MOLEX 2167592025 High Power Connector Specifications:
- Pitch - Mating Interface: 11.00mm
- Cable Length: 2.0m
- Number of Circuits: 2
- Wire Size: AWG 6
- Material - Resin: Polyester
- Material - Metal: Copper Alloy
- Material - Plating: Gold
- Color: Black
- Maximum Current: 60A
- Maximum Voltage: 600V
- Operating Temperature Range: -40°C to +105°C
- Dielectric Withstanding Voltage: 1000V DC for 0.01 seconds
- Resistance: 106 milliohms
- Locking Mechanism: Locking screw and tangs
- Durability: Minimum 25 mating cycles
- Connection Type: Crimp or Compression
- Housing Material: PBT
- RoHS Compliant: Yes
- Overmolded: Yes
- Application: Aerospace, defense, power supplies, communication equipment, electric vehicles, medical devices, solar systems, telecommunications
Buy the Molex 2167592025 – Reliable High-Power Connector for Industrial Applications
Order Molex 2167592025 online now to upgrade your industrial, aerospace, or automotive systems with a high-reliability connector capable of handling 60A and 600V. This overmoulded assembly features an 11mm pitch with a locking screw for secure mating, ensuring safety and durability in critical applications. Its construction from high-quality materials like copper alloy contacts and a PBT housing guarantees longevity and performance in extreme temperatures. Easy to install with crimp or compression termination, this connector is essential for demanding high-power environments that require dependable, secure connections.
Get Molex 2167592025 today—built for high current, secure connections, and durable use in demanding industrial environments.
Frequently Asked Questions
Where can I buy MOLEX 2167592025?
You can click on the BUY or RFQ button to purchase 2167592025 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2167592025?
You can download the 2167592025 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2167592025?
MOLEX
