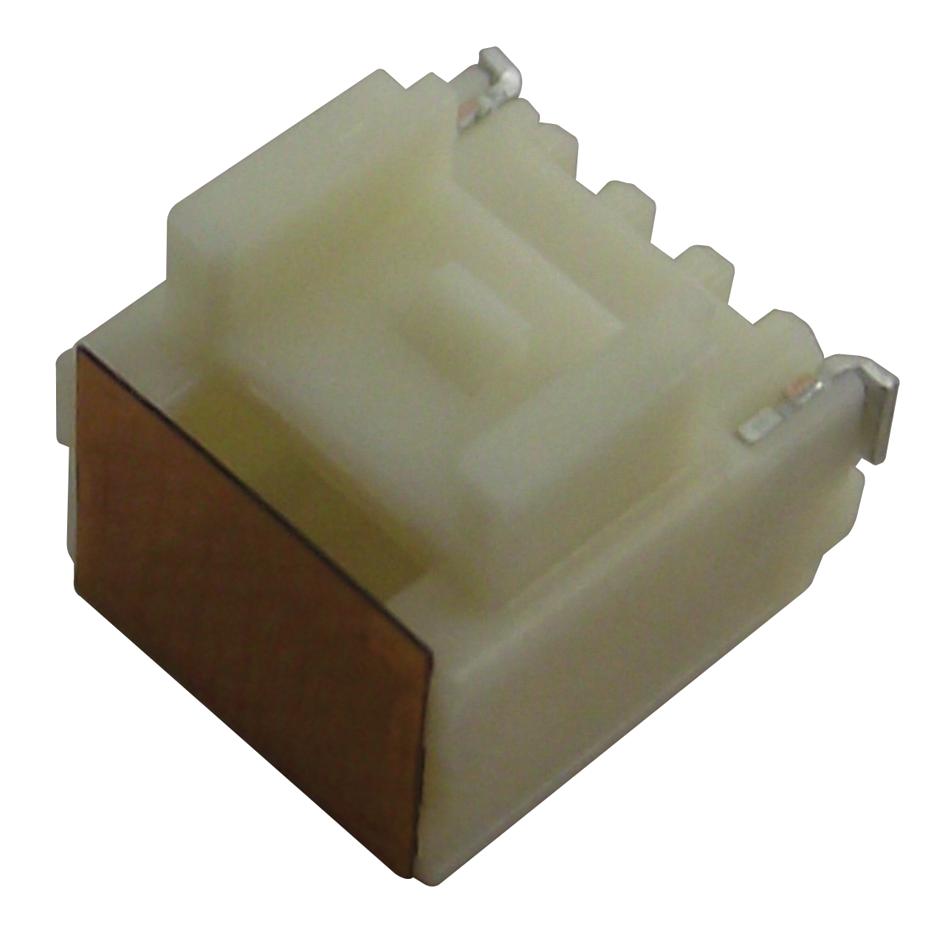

MOLEX 5019400307 Wire-to-Board Header
The MOLEX 501940-0307 is a Pico-Clasp wire-to-board header offering a compact and reliable connection solution. Designed with a 1.00mm pitch, this header is suitable for applications requiring space optimization. Its surface mount design simplifies PCB assembly, while the vertical orientation allows for efficient routing of wires. The tin plating provides excellent solderability and corrosion resistance, ensuring a durable and long-lasting connection. Commonly used in consumer electronics, industrial equipment, and automotive applications.
MOLEX 5019400307 Wire-to-Board Header Specifications:
- Product Family: Signal
- Series: 501940
- Application Overview: Wire-to-Board
- Product Name: Pico-Clasp Wire-to-Board Connectors
- UPC: 822350287050
- Breakaway Circuits (Loaded): No
- Circuits (maximum): 3
- Color - Resin: Natural
- Durability (mating cycles max): 30
- First Mate / Last Break: No
- Glow-Wire Capable: No
- Guide to Mating: No
- Keying to Mating Part: No
- Lock to Mating Part: No
- Material - Metal: Phosphor Bronze
- Material - Plating: Tin
- Mating Material - Plating: Tin
- Termination Material - Resin: Nylon
- Net Weight: 104.600/mg
- Number of Rows: 1
- Orientation: Vertical
- PCB Locator: No
- PCB Retention: Yes
- Packaging Type: Embossed Tape on Reel
- Pitch - Mating Interface: 1.00mm
- Plating min - Mating: 1.016µm
- Plating min - Termination: 1.016µm
- Polarized to Mating Part: Yes
- Polarized to PCB: No
- Shrouded: Fully
- Stackable: No
- Temperature Range - Operating: -40° to +105°C
- Termination Interface: Style: Surface Mount
- Current - Maximum per Contact: 1.0A
- Voltage - Maximum: 50V AC (RMS)/DC
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained Per - ED/61/2018
- Halogen-Free Status: Not Low-Halogen
