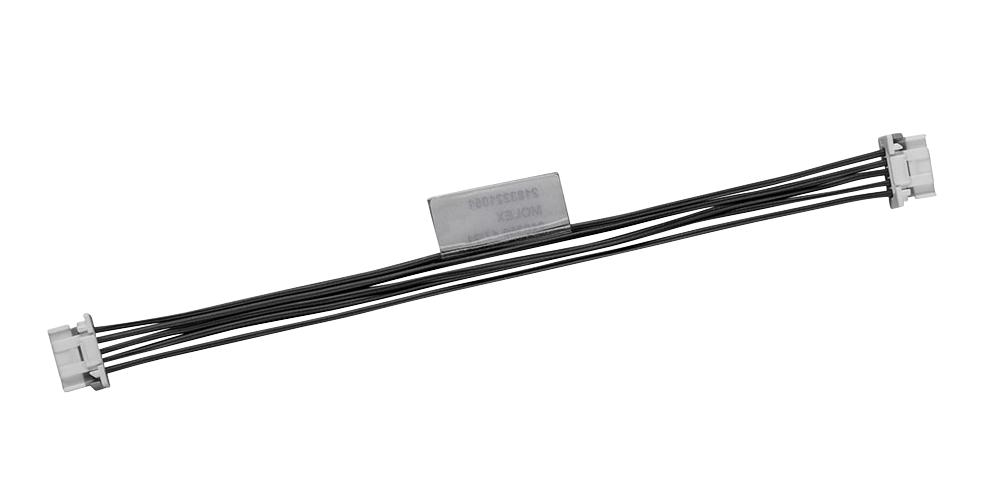

MOLEX 2183221051 DuraClik Cable Assembly
The 218322 series is an off-the-shelf DuraClik ISL-to-DuraClik ISL cable assembly with a 2mm pitch, designed for reliable connections in automotive, industrial automation, and consumer devices. It features a protected enclosed contact design that safeguards against dust and debris, and provides audible click confirmation when mated. Made with a white PBT housing, it supports a maximum voltage of 60V AC/DC, uses 22 AWG wire, and includes copper alloy contacts with tin plating for durability. Compatible with right-angle and vertical headers, it operates effectively from -40°C to +105°C with up to 20 mating cycles.
MOLEX 2183221051 DuraClik Cable Assembly Specifications:
- Series: 218322
- Application: Automotive, Signal, Wire-to-Board
- Assembly Configuration: Connector to Connector, Overmolded
- Cable Length: 150.00mm
- Circuits (Loaded): 5
- Color - Resin: White
- Gender: Female-Female
- Lock to Mating Part: Yes
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: PBT
- Net Weight: 4.350g
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 2.00mm
- Termination Interface: Crimp or Compression
- Wire Insulation Diameter: 1.30mm
- Wire Size AWG: 22
- Wire/Cable Type: 1x0.35mm² FLRY-A
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 60V AC/DC
- Operating Temperature Range: -40°C to +105°C
- Certifications: EU RoHS, REACH SVHC, Halogen-Free
Buy the Molex 2183221051 – Reliable DuraClik for Industrial Applications
Order the Molex DuraClik Cable Assembly 2183221051 online now for a reliable, durable, and easy-to-mate connection solution ideal for automotive, industrial automation, and consumer electronics applications. Its protected contact design guards against dust and debris, ensuring long-term performance. With a white PBT housing, 22 AWG wire, and maximum voltage of 60V, this flexible assembly supports up to 20 mating cycles, operating from -40°C to +105°C. Perfect for designers requiring a dependable wire-to-wire connection in demanding environments.
Get Molex 2183221051 today—built for precision and long-lasting durability in automotive, industrial, and consumer device connections.
