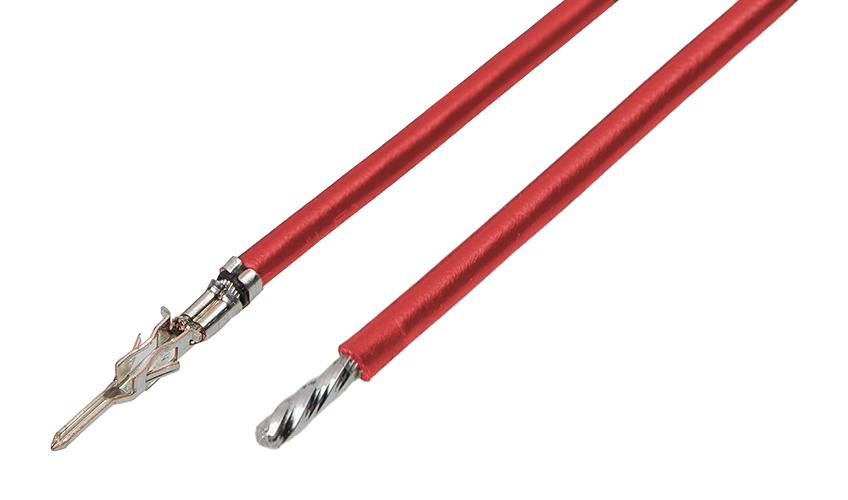

MOLEX 2147632221 Micro-Fit Power Lead
This Pre-Crimped Lead Micro-Fit 3.0 Male-to-Pigtail connector is gold-plated, 75 mm long, suitable for power and wire-to-wire applications. Designed for reliable connections, it features a crimp or compression termination style, with a maximum wire diameter of 1.85mm and 18 AWG wire size. Made from phosphor bronze with gold plating, it offers high electrical performance with a maximum current of 8.5A per contact. Compatible with Micro-Fit 3.0 plug housings, it meets RoHS standards for eco-friendliness and high-quality electrical connectivity.
MOLEX 2147632221 Micro-Fit Power Lead Specifications:
- Cable Length: 75.00mm
- Color - Resin: Red
- Gender: Male-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Wire Size AWG: 18
- Wire Insulation Diameter: 1.85mm max.
- Current - Maximum per Contact: 8.5A
- Application: Power, Wire-to-Wire
- Termination Interface Style: Crimp or Compression
- Net Weight: 0.978g
- RoHS Compliant: Yes
- Halogen-Free: Not Halogen-Free
- EU RoHS: Compliant
- Reference Drawing Number: 2147631221-000
Buy the Molex 2147632221 – Reliable Power Connection for Industrial Applications
Enhance your electronic assembly with the Molex Micro-Fit Power Lead. This 75mm gold-plated male-to-pigtail connector offers reliable, high-current connections suitable for power and wiring applications. Crafted from durable phosphor bronze with tin plating, it supports up to 8.5A per contact and features a crimp or compression termination style for secure attachment. Compatible with Micro-Fit 3.0 housings, it ensures compliance with RoHS standards and enhances overall electrical integrity for industrial, automation, and manufacturing systems.
Order your Molex 2147632221 series micro-fit pigtail today and ensure dependable electrical connections for your industrial projects.
Frequently Asked Questions
Where can I buy MOLEX 2147632221?
You can click on the BUY or RFQ button to purchase 2147632221 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2147632221?
You can download the 2147632221 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2147632221?
MOLEX
