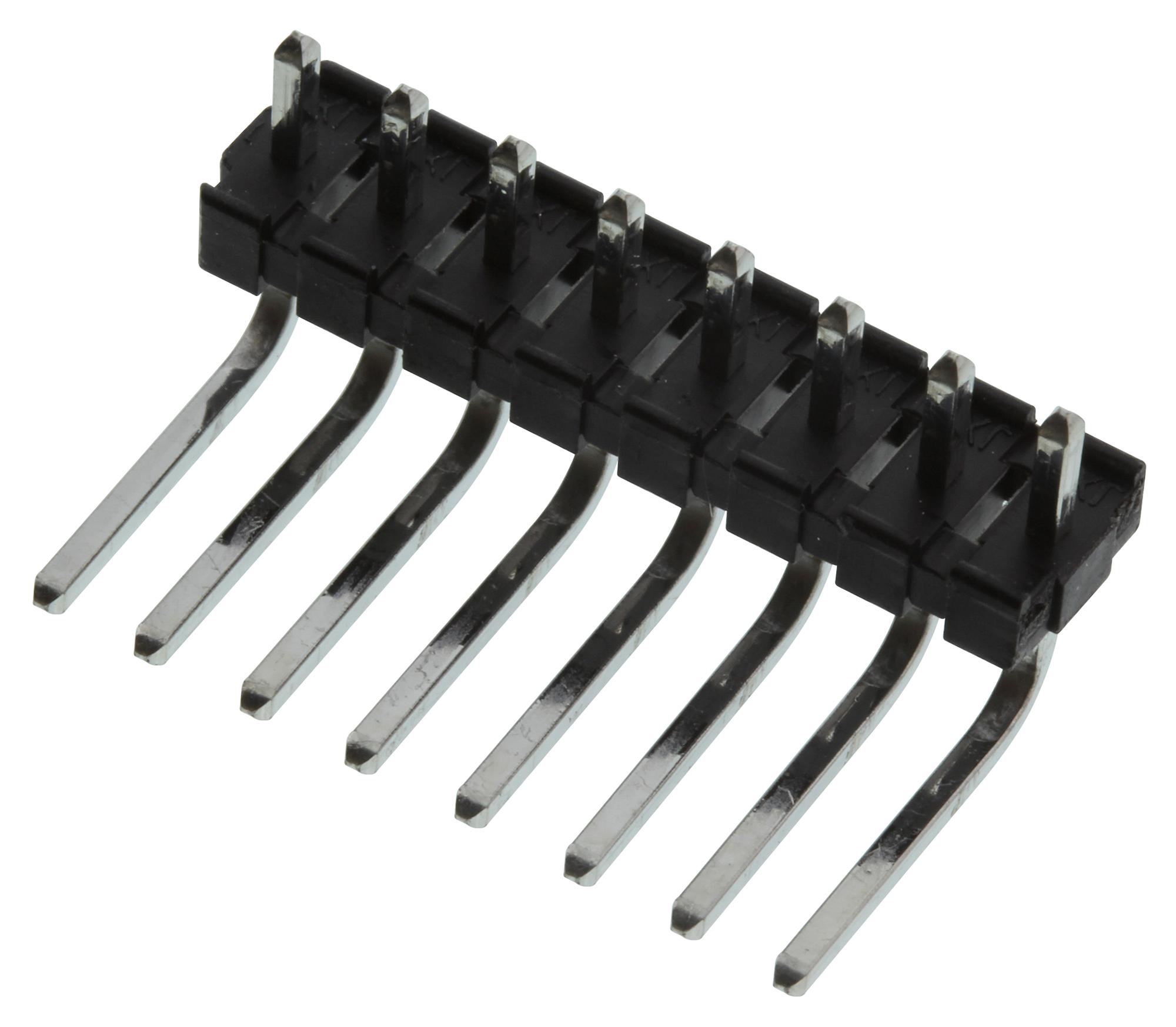

MOLEX 26481082 PCB Connector
The Molex KK 396 Breakaway Header is a right-angle connector with 8 circuits, featuring tin plating for reliable electrical connections in PCB applications. Designed for board-to-board, power, and wire-to-board connections, it supports up to 7.0A current and 250V voltage rating. Made from durable polyester with a 1.60mm pitch, it offers high mating cycle durability, is RoHS compliant, halogen-free, and CSA and UL certified. Its compact design ensures easy installation in industrial equipment, automation systems, and electronic devices requiring robust interconnect solutions.
MOLEX 26481082 PCB Connector Specifications:
- Product Family: PCB Headers
- Series: KK 396
- Application: Board-to-Board, Power, Wire-to-Board
- Number of Circuits: 8
- Orientation: Right Angle
- Color - Resin: Polyester
- Material - Metal: Not specified
- Material - Plating Mating: Tin (Sn)
- Material - Resin: Polyester
- Net Weight: 2.921 grams
- Pin Pitch - Mating Interface: 3.96 mm
- Pin Pitch - Termination Interface: 3.96 mm
- PCB Thickness - Recommended: Not specified
- PCB Locator: No
- PCB Retention: No
- First Mate / Last Break Durability: Not specified
- Temperature Range - Operating: Not specified
- Current - Maximum per Contact: 7.0 A
- Voltage - Maximum: 250 V
- Flammability: UL 94V-0
- RoHS Compliant: Yes
- Halogen-Free: No
- CSA Certified: Yes
- UL Listed: Yes
- Solder Process Temperature Max: 235°C
- Process Duration at Max Temp: 5 seconds
Buy the Molex 0026481082 – Reliable PCB Interconnect for Industrial Applications
Experience the reliable performance of the Molex KK 396 Breakaway Header, a high-quality 8-circuit right-angle PCB connector. Designed for industrial applications, it features tin-plated contacts, a 1.60mm pitch, and supports up to 7.0A at 250V. This durable, RoHS-compliant connector ensures secure connections in PCB, power, and wire-to-board systems, offering excellent mating cycle durability and easy installation. Perfect for automation, electronic equipment, and manufacturing parts, it guarantees long-lasting performance and safety.
Get Molex 0026481082 today—built for precision and long-lasting durability in industrial wiring and electronic systems.
