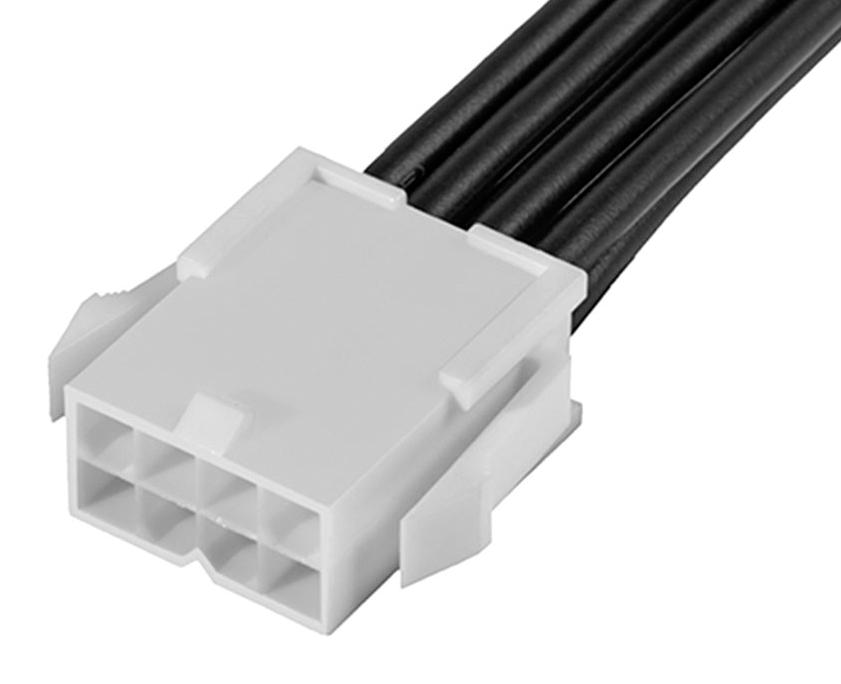

MOLEX 2153261082 Mini-Fit Jr. Cable Assembly
The MOLEX 215326-1082 is a Mini-Fit Jr. female-to-pigtail off-the-shelf (OTS) cable assembly designed for power applications. It boasts a dual-row configuration, 8 circuits, and a 300mm length, making it suitable for various wire-to-board and wire-to-wire connections. The assembly utilizes tin plating for both mating and termination interfaces, ensuring robust electrical performance. Constructed with a nylon resin and brass material, this cable assembly provides a durable and reliable solution for power distribution in industrial and commercial settings.
MOLEX 2153261082 Mini-Fit Jr. Cable Assembly Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Single Ended
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 300.00mm
- circuits_loaded: 8
- color: Black
- gender: Female-Pigtail
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating_mating: Tin (Sn)
- material_plating_termination: Tin (Sn)
- material_resin: Nylon
- net_weight: 56.876/g
- number_of_rows: 2
- pitch_mating_interface: 4.20mm
- plating_min_mating: 0.889µm
- plating_min_termination: 0.889µm
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- upc: 193264590049
- series: 215326
