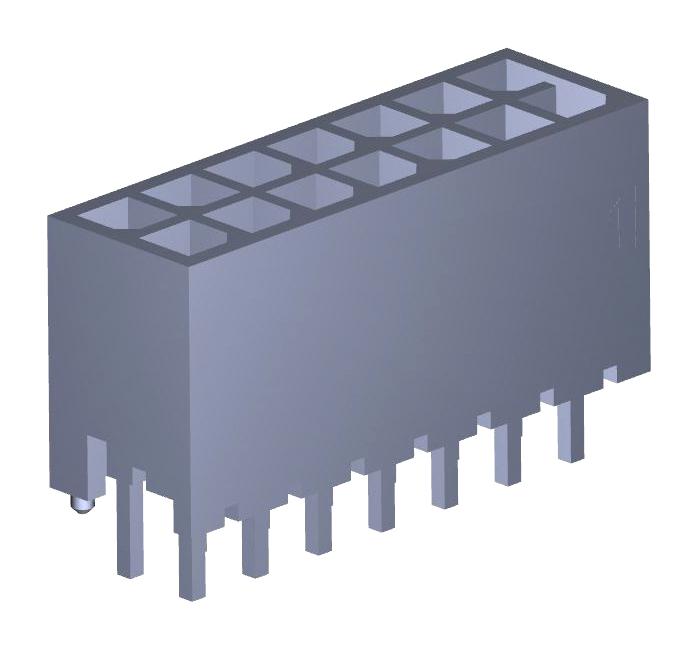

MOLEX 2068321401 Micro-Fit Power Header
The Micro-Fit+ Vertical Header with a 3.00mm pitch features dual rows and 14 circuits, with tin over nickel plating. Designed for high reliability, it is UL 94V-0 flame-retardant, glow-wire capable, and operates within a temperature range of -40°C to +105°C. Made from high copper alloy and liquid crystal polymer, it offers a maximum current of 12.5A per contact and a voltage of 600V AC/DC. Its shrouded, polarized design ensures secure mating and durability for power and wire-to-board applications.
MOLEX 2068321401 Micro-Fit Power Header Specifications:
- Pitch: 3.00mm
- Number of Circuits: 14
- Material - Metal: High Copper Alloy
- Plating: Tin over Nickel
- Resin: Liquid Crystal Polymer
- Color: Black
- Temperature Range: -40°C to +105°C
- Current: 12.5A per contact
- Voltage: 600V AC/DC
- Durability: High mating cycle count
- Locking: Lock to Mating Part, Keyed to Mating Part
- Orientation: Vertical
- PC Tail Length: 3.18mm
- Packaging: Tray
- Shrouded: Yes
- Polarized: Yes
- Glow-Wire Capable: Yes
- UL 94V-0 Flame Retardant: Yes
Buy the Molex 2068321401 – Reliable Micro-Fit Power Connector for Industrial Applications
Purchase the Molex Micro-Fit Power Header online today—designed for reliable power delivery and secure connections in industrial and electronic applications. Engineered with a 3.00mm pitch for precise mating, this dual row, 14 circuit connector features tin over nickel plating, UL 94V-0 flame retardancy, glow-wire capability, and a temperature range suitable for demanding environments. Its shrouded, polarized design ensures safe, secure mating, while durable materials provide long-term performance up to 10,000 mating cycles. Ideal for power distribution, wiring harnesses, and manufacturing processes, buy now for quality and dependability.
Get Molex 2068321401 today—built for high current capacity and long-lasting durability in power and wire-to-board connections.
