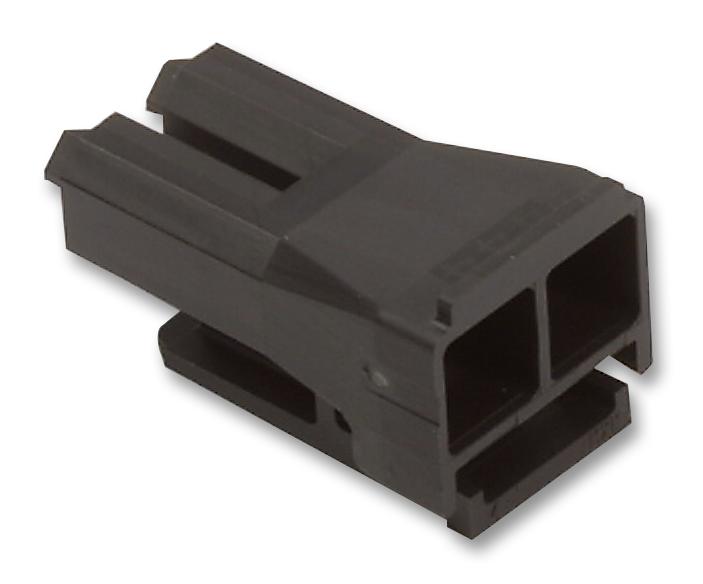

MOLEX 444411003 Power Connector
The Sabre Power Connector with 7.50mm pitch is a durable and reliable receptacle designed for power and wire-to-board applications. Made from nylon resin, it features a UL 94V-2 flame rating, a maximum current of 18.0A per contact, and operates within a temperature range of -40°C to +75°C. It includes three circuits, is polarised for secure mating, and incorporates positive locking and Terminal Position Assurance (TPA). Suitable for use in various electrical systems, it is RoHS compliant and halogen-free, ensuring safe, environmentally friendly connections.
MOLEX 444411003 Power Connector Specifications:
- Pitch - Mating Interface: 7.50mm
- Circuits (maximum): 3
- Color - Resin: Natural
- Flammability: UL 94V-2
- Material - Resin: Nylon
- Current - Maximum per Contact: 18.0A
- Temperature Range - Operating: -40°C to +75°C
- Gender: Receptacle
- Lock to Mating Part: Yes
- Polarized to Mating Part: Yes
- Net Weight: 2.643 grams
- Packaging Type: Bag
- Agency Certification: CSA, UL
- RoHS Compliance: Yes
- Halogen-Free: Yes
- Use With: Female Crimp Terminals 43375
- Mates With: Plug Housing 436801003, Right Angle Headers 43160
- Series: 44441
Buy the Buy Molex Sabre Power Connector Part Number 444411003 Online
Upgrade your electrical setups with this high-quality Molex power connector, featuring a 7.50mm pitch, three circuits, and UL 94V-2 flame rating. Made from durable nylon, it supports up to 18A current per contact and operates efficiently within a temperature range of -40°C to +75°C. Its polarized design with positive locking ensures secure connections, while RoHS and halogen-free materials make it environmentally friendly. Ideal for power and wire-to-board applications, this connector guarantees safety, durability, and reliable performance in demanding environments.
Get Molex 444411003 today—designed for secure power connections with reliable locking and high temperature tolerance.
Frequently Asked Questions
Where can I buy MOLEX 444411003?
You can click on the BUY or RFQ button to purchase 444411003 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 444411003?
You can download the 444411003 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 444411003?
MOLEX
