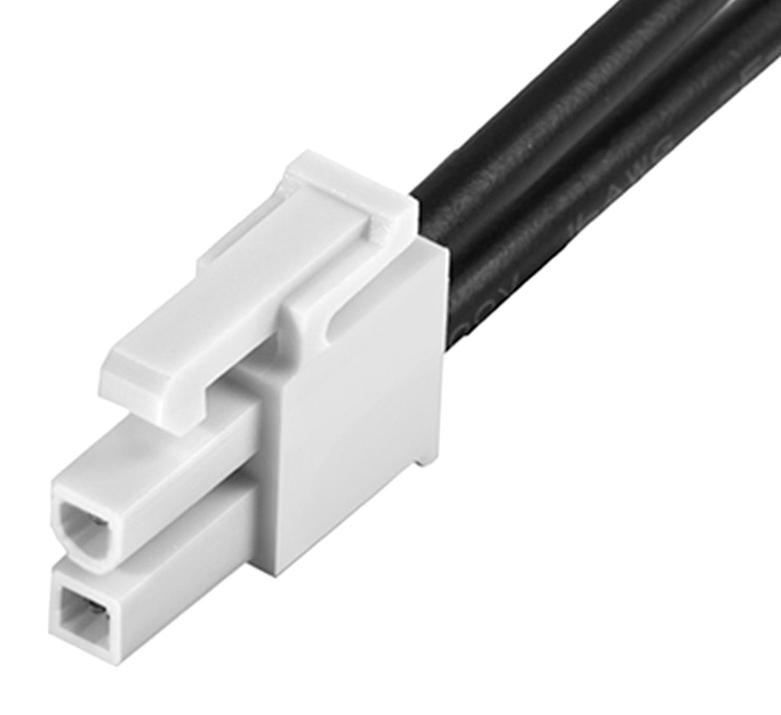

MOLEX 2153271023 Mini-Fit Jr. Cable Assembly
The MOLEX 215327-1023 is a Mini-Fit Jr. male-to-male off-the-shelf cable assembly, ideal for wire-to-wire power connections. With a 600.00mm length, dual-row configuration, and tin plating on both mating and termination interfaces, this assembly provides reliable performance. Constructed with brass and nylon materials, it supports a maximum current of 9.0A and a voltage of 600V, making it suitable for various industrial power applications. It is RoHS compliant and designed to mate with Mini-Fit Jr. receptacle housings and cable assemblies.
MOLEX 2153271023 Mini-Fit Jr. Cable Assembly Specifications:
- application: Power, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit Jr. Both Ends
- cable_length: 600.00mm
- circuits_loaded: 2
- color_resin: Black
- material_metal: Brass
- plating_mating: Tin (Sn)
- plating_termination: Tin (Sn)
- material_resin: Nylon
- net_weight_g: 29.303
- number_of_rows: 2
- pitch_mating_interface: 4.20mm
- plating_min_mating: 2.540µm
- plating_min_termination: 2.540µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_mm: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_maximum_per_contact_a: 9.0
- voltage_maximum_v: 600
- material_info_drawing_numbers_sales_drawing: 2153271021-000
- upc: 193264590261
