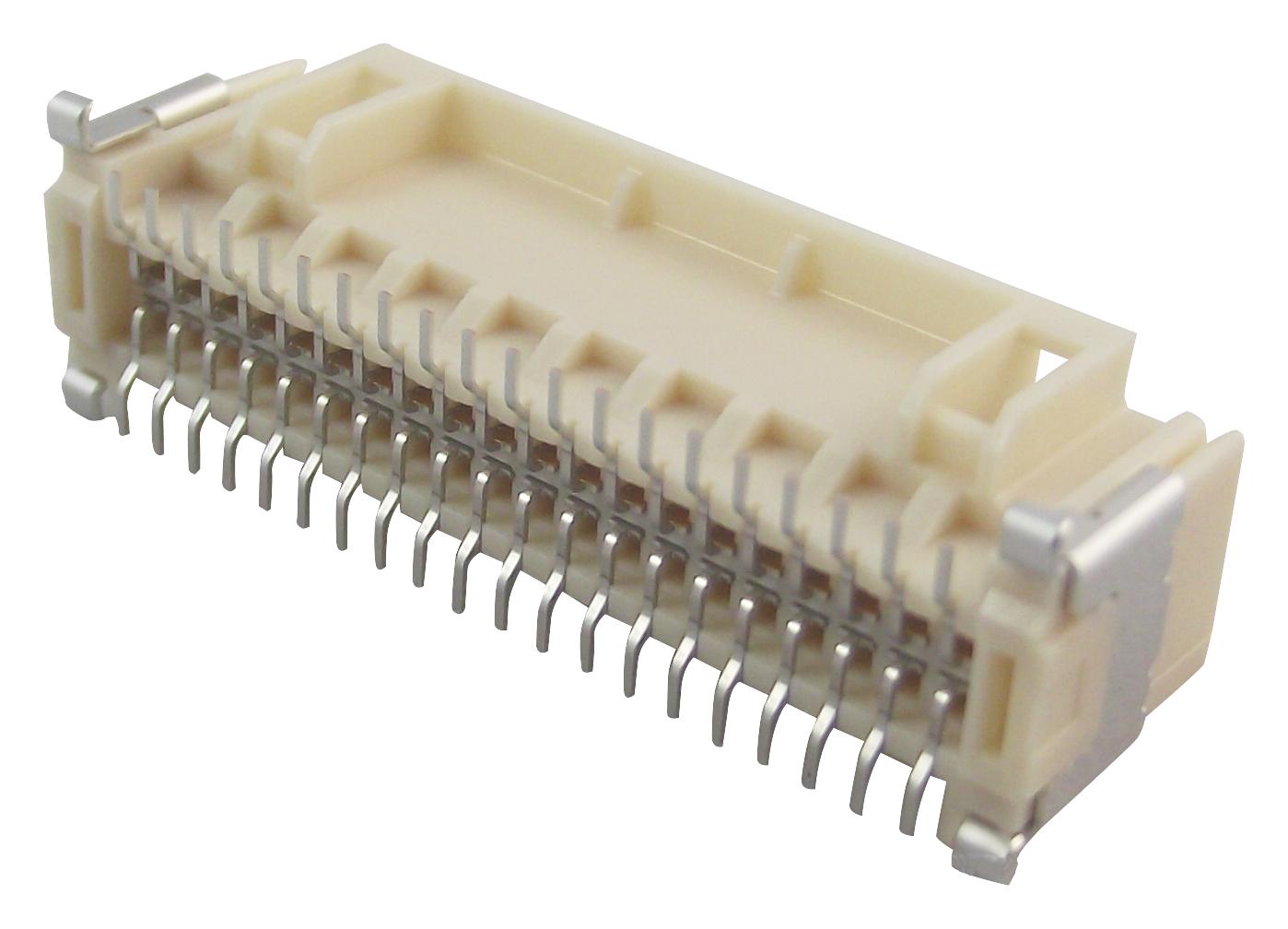

MOLEX 5019314070 Duo-Clasp Wire-to-Board
The MOLEX 5019314070 is a Duo-Clasp Wire-to-Board PCB Receptacle, offering a robust and reliable connection solution for wire-to-board applications. With a 1.25mm pitch and a dual-row, vertical design, this receptacle accommodates 40 circuits and utilizes 0.10µm gold plating for enhanced conductivity and durability. Its keying and locking features ensure secure mating, while its polarized design simplifies assembly. Suitable for operating temperatures ranging from -25°C to +85°C, this receptacle is commonly used in consumer electronics, automotive systems, and industrial equipment where reliable signal transmission is critical.
MOLEX 5019314070 Duo-Clasp Wire-to-Board Specifications:
- Circuits (Loaded): 40 Circuits
- Durability (mating cycles max): 30
- Glow-Wire Compliant: No
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Number of Rows: 2
- Orientation: Vertical
- PCB Retention: Yes
- Pitch - Mating Interface: 1.25mm
- Plating min - Mating: 0.100µm
- Plating min - Termination: 1.000µm
- Temperature Range - Operating: -25°C to +85°C
- Current - Maximum per Contact: 1.0A
- Voltage - Maximum: 50V AC (RMS)/DC
- Mated Height: 10.95mm
- Net Weight: 1668.200/mg
- Polarized to Mating Part: Yes
- Polarized to PCB: No
- Stackable: No
