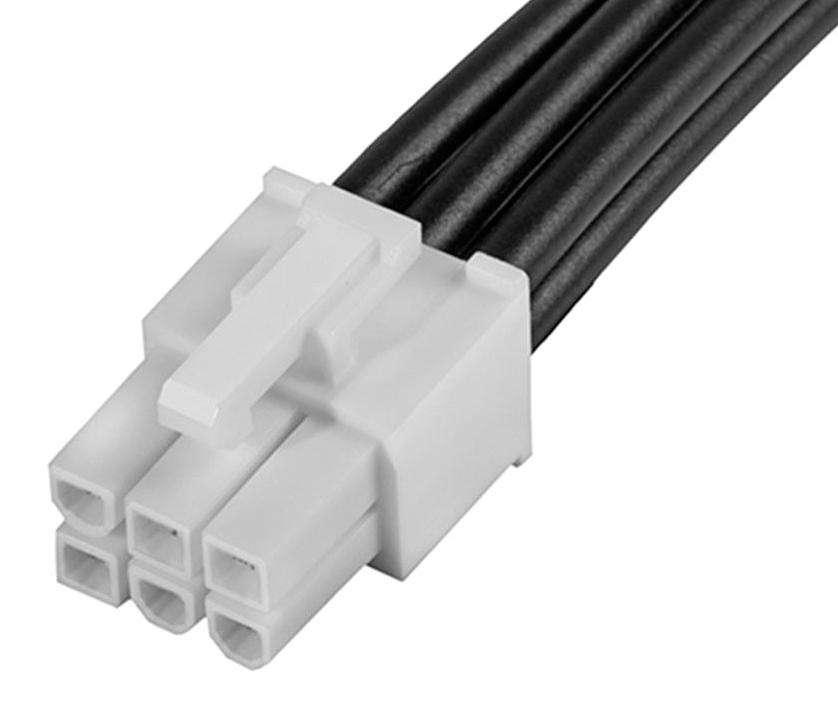

MOLEX 2153271061 Mini-Fit Jr. Cable Assembly
The MOLEX 215327-1061 is a Mini-Fit Jr. male-to-male off-the-shelf cable assembly designed for power and wire-to-wire applications. It boasts a dual-row configuration, 6 circuits, and a 150mm cable length. Constructed with brass and nylon materials, and featuring tin plating, this assembly provides robust and reliable connectivity. It is RoHS compliant and suitable for various industrial and commercial applications requiring secure power transmission.
MOLEX 2153271061 Mini-Fit Jr. Cable Assembly Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit Jr. Both Ends
- cable_length: 150.00mm
- circuits_loaded: 6
- color_resin: Black
- material_metal: Brass
- plating_mating: Tin (Sn)
- plating_termination: Tin (Sn)
- material_resin: Nylon
- net_weight_g: 27.636
- number_of_rows: 2
- pitch_mating_interface: 4.20mm
- plating_min_mating: 2.540µm
- plating_min_termination: 2.540µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_mm: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_maximum_per_contact_a: 9.0
- voltage_maximum_v: 600
- upc: 193264590308
- material_info: Not Low-Halogen
- reach_svhc: Not Contained
- sales_drawing: 2153271061-000
