MOLEX 761603020 Backplane Connector
The Impact 100 Ohm daughtercard receptacle is a high-performance, right-angle connector designed for backplane systems. It features 120 circuits arranged in 4 pairs with a 1.20mm pitch, plated through hole design, and is made from high-temperature thermoplastic with gold and tin plating. Certified by UL, it offers a maximum of 200 mating cycles, operating from -55°C to +85°C, supporting data rates up to 25 Gbps. This reliable, lead-free connector accommodates high-density applications with precise impedance and durable construction.
MOLEX 761603020 Backplane Connector Specifications:
- Imp: 100Ω impedance, 120 circuits, 4 pairs, 1.20mm pitch
- Material - Metal: High Performance Alloy (HPA), Gold plated
- Material - Resin: High Temperature Thermoplastic, Black color
- Operating temperature: -55°C to +85°C
- Maximum mating cycles: 200
- Voltage rating: 30V AC/DC
- Flammability: UL 94V-0
- Dimensions: Not specified, through hole design, 0.39mm plated through hole
- Durability: 200 mating cycles, impact system
- Shielding: Not equipped with shielding
- Certification: UL Listed, RoHS compliant, China RoHS
- Physical characteristics: Right-angle orientation, tray packaging, 1.90mm PCB height, 1.00mm PCB locator pitch

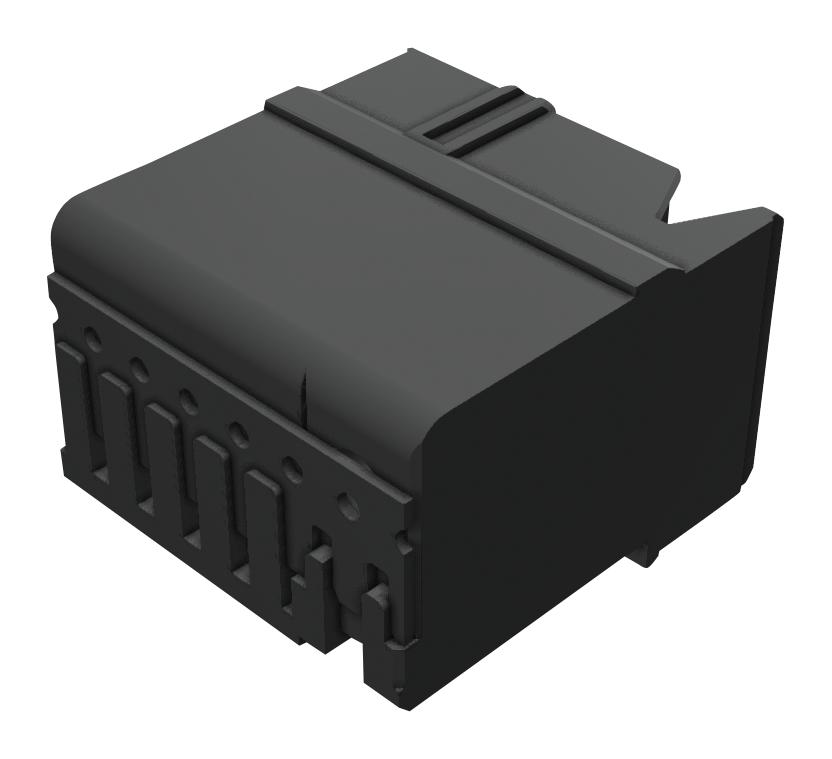

Buy the Buy Molex Impact Backplane Connector Part Number 0761603020 Online
Enhance your high-speed backplane systems with this Molex Impact connector featuring 120 circuits, 4 pairs, and a right-angle design. It offers excellent durability with up to 200 mating cycles and operates efficiently from -55°C to +85°C. Made from high-temperature thermoplastic with gold and tin plating, ensuring excellent electrical performance and corrosion resistance. Ideal for complex electronic systems, this UL-listed connector supports data rates up to 25 Gbps and has a compact, robust design perfect for demanding industrial applications. Purchase online now for quick delivery and reliable performance.
Order your Molex Impact 120 Circuit Daughtercard Receptacle PartNumber 0761603020 today and ensure high-speed, reliable backplane connections for your system.
Frequently Asked Questions
Where can I buy MOLEX 761603020?
You can click on the BUY or RFQ button to purchase 761603020 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 761603020?
You can download the 761603020 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 761603020?
MOLEX
