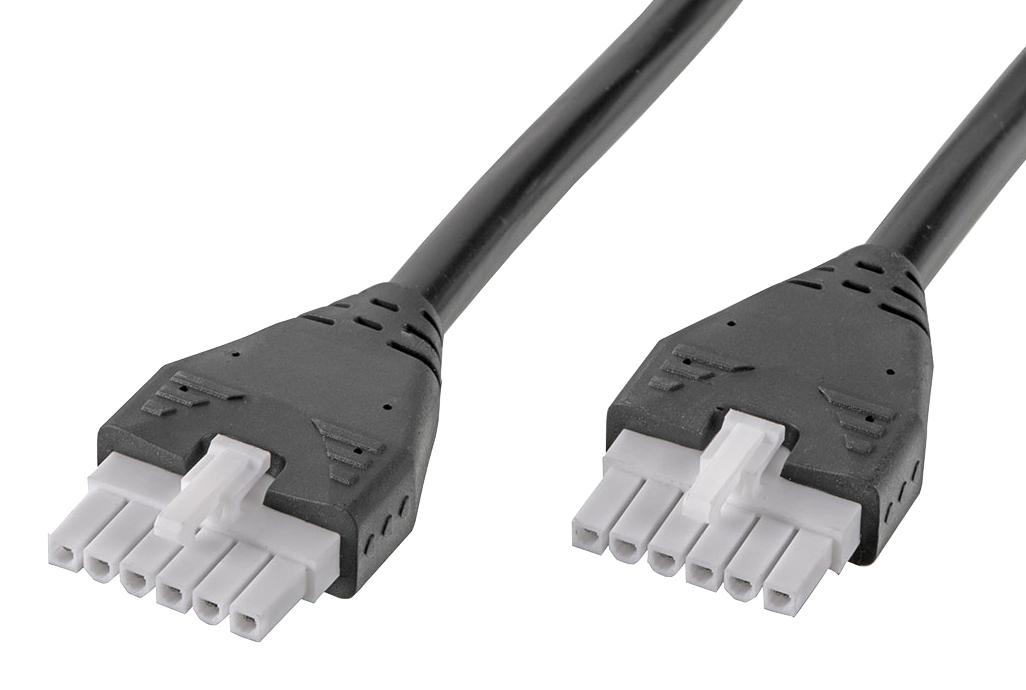

MOLEX 2153300610 Mini-Fit Jr Power Cable
This Mini-Fit Jr-to-Mini-Fit Jr cable assembly offers a reliable 1.0-meter length with six circuits, designed for power and wire-to-wire applications. Featuring an overmolded design with connector-to-connector configuration, it provides high durability and secure connection. The assembly employs tin-plated brass contacts, black nylon housing, and supports current up to 6.0A per contact. Suitable for use in various electronic and power systems, it is RoHS compliant, halogen-free, and ideal for applications requiring a sturdy, corrosion-resistant connection with easy handling and installation.
MOLEX 2153300610 Mini-Fit Jr Power Cable Specifications:
- Cable Length: 1.0m
- Circuits (Loaded): 6
- Color - Resin: Black
- Gender: Female-Female
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Wire Insulation Diameter: 4.20mm
- Wire Size AWG: 16
- Current - Maximum per Contact: 6.0A
- Packaging Type: Bag
- Connector to Connector Overmolded Assembly
- Pitch - Mating Interface: 4.20mm
- RoHS Compliance: Yes, Halogen-Free, REACH SVHC compliant
- Status: Active, RoHS, China RoHS, ELV Not Relevant
Buy the Molex Series Mini-Fit Jr: 2153300610
Purchase the Molex Mini-Fit Jr power cable assembly online today to guarantee high-quality, durable power connections in your electronic devices. With a length of 1.0 meters and six circuits, this overmolded connector features tin-plated brass contacts and a robust nylon housing that withstands demanding environments. Its RoHS compliance and halogen-free design ensure environmentally friendly operation while providing secure, corrosion-resistant connections. Ideal for wire-to-wire applications requiring reliable, easy-to-install power solutions in industrial, commercial, or consumer electronics.
Order your Molex Series Mini-Fit Jr 2153300610 cable assembly today and ensure reliable power connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 2153300610?
You can click on the BUY or RFQ button to purchase 2153300610 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153300610?
You can download the 2153300610 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153300610?
MOLEX
