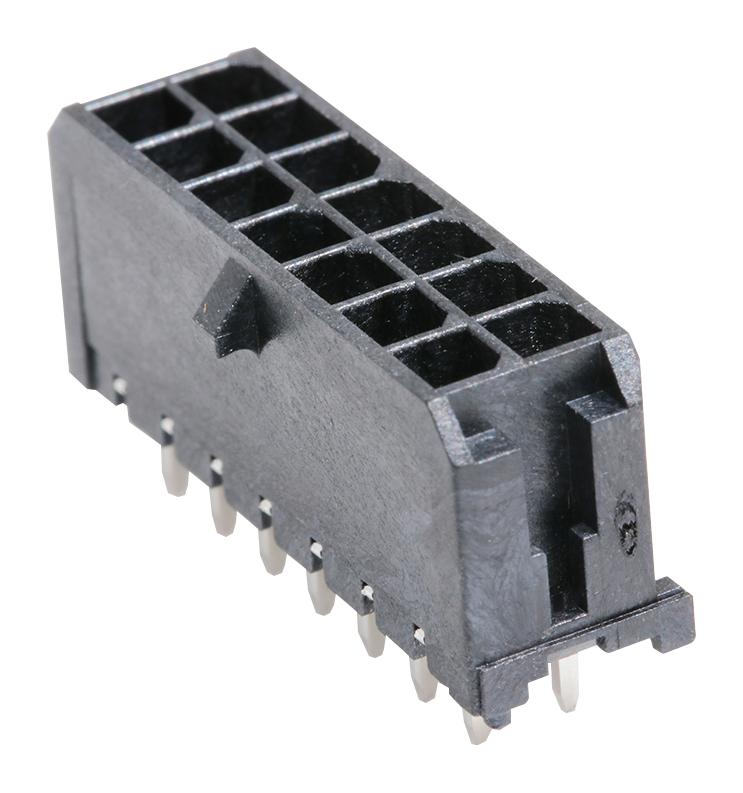

MOLEX 430451428 Micro-Fit Connector
The Micro-Fit 3.0 Vertical Header is a reliable, high-performance connector system with a 3.00mm pitch, dual row configuration, and 14 circuits. Designed for power and wire-to-board applications, it features a PCB mount with polarizing peg, gold plating, glow-wire capability, and a height of 1.60mm. Manufactured from high-temperature thermoplastic, it supports up to 8.5A and 600V, with durability up to 260 mating cycles. Compliant with RoHS standards, it offers secure locking and alignment features for efficient electrical connections in complex systems.
MOLEX 430451428 Micro-Fit Connector Specifications:
- Pitch: 3.00mm
- Number of Circuits: 14
- Color - Resin: Black
- Material - Resin: High temperature thermoplastic
- Material - Metal: Not specified
- Material - Plating Mating: Gold
- Material - Plating Termination: Not specified
- Durability (mating cycles max): 260
- Flammability: UL 94V-0
- Glow-Wire Capable: Yes
- Lock to Mating Part: Fully
- Mated Height: 1.60mm
- Voltage - Maximum: 600V
- Current - Maximum per Contact: 8.5A
- Temperature Range - Operating: -40°C to +105°C
- PCB Thickness - Recommended: Not specified
- PCB Header Type: Vertical
- Packaging: Tray
- Polarized to PCB: Yes
- Surface Mount Compatible (SMC): No
- Stackable: No
Buy the Molex Series Micro-Fit 3.0 Connector: 0430451428
Purchase the Molex Micro-Fit 3.0 Connector today to ensure secure, high-current power connections with reliable locking and gold-plated contacts. Designed for durability and efficient installation, this connector supports up to 8.5A current and 600V voltage, making it ideal for power and wire-to-board applications. Its 3.00mm pitch and dual row design provide optimal space utilization within electronic systems. Compatible with high-temperature thermoplastic, it withstands operating temperatures from -40°C to +105°C, ensuring consistent performance in demanding environments. Buy online now for fast delivery and trusted quality.
Get Molex 0430451428 today—built for precision, durability, and reliable power connections in your electronic projects.
